F-5 TIGER
CNC steel & titanium. Composite tooling.
CNC-Stahl & Titan. Formenbau Faserverbund.
The challenge / Die Herausforderung
Hard model touchdowns. Harte Modell-Landungen.

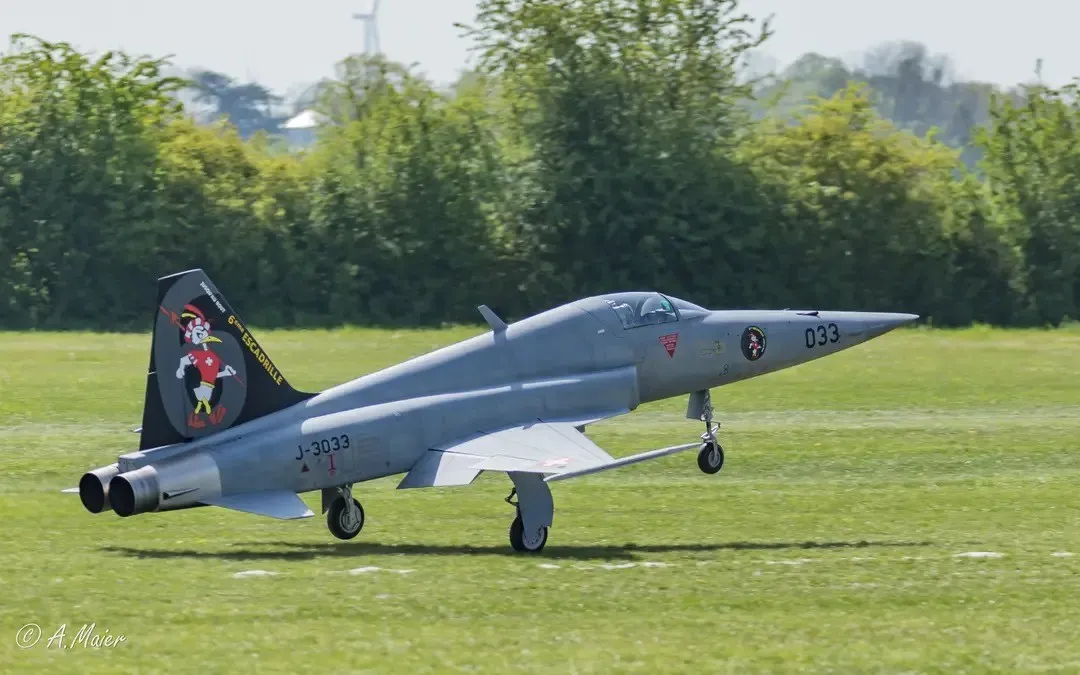

Jet models land at high sink rates on a narrow track — the landing gear must absorb lateral loads at 1:4 without yield. CNC-machined steel links, titanium pins and composite fairings are designed for repeated duty on functional models and drone demonstrators.
Jet-Modelle landen mit hoher Sinkrate auf schmaler Spur — das Fahrwerk muss laterale Kräfte im Maßstab 1:4 ohne Nachgeben aufnehmen. CNC-gefräste Stahlstreben, Titanbolzen und Faserverbund-Verkleidungen sind für wiederholte Zyklen am Funktionsmodell und Drohnen-Demonstrator ausgelegt.
Engineering / Engineering
CNC machining. Toolmaking. CNC-Zerspanung. Formenbau.

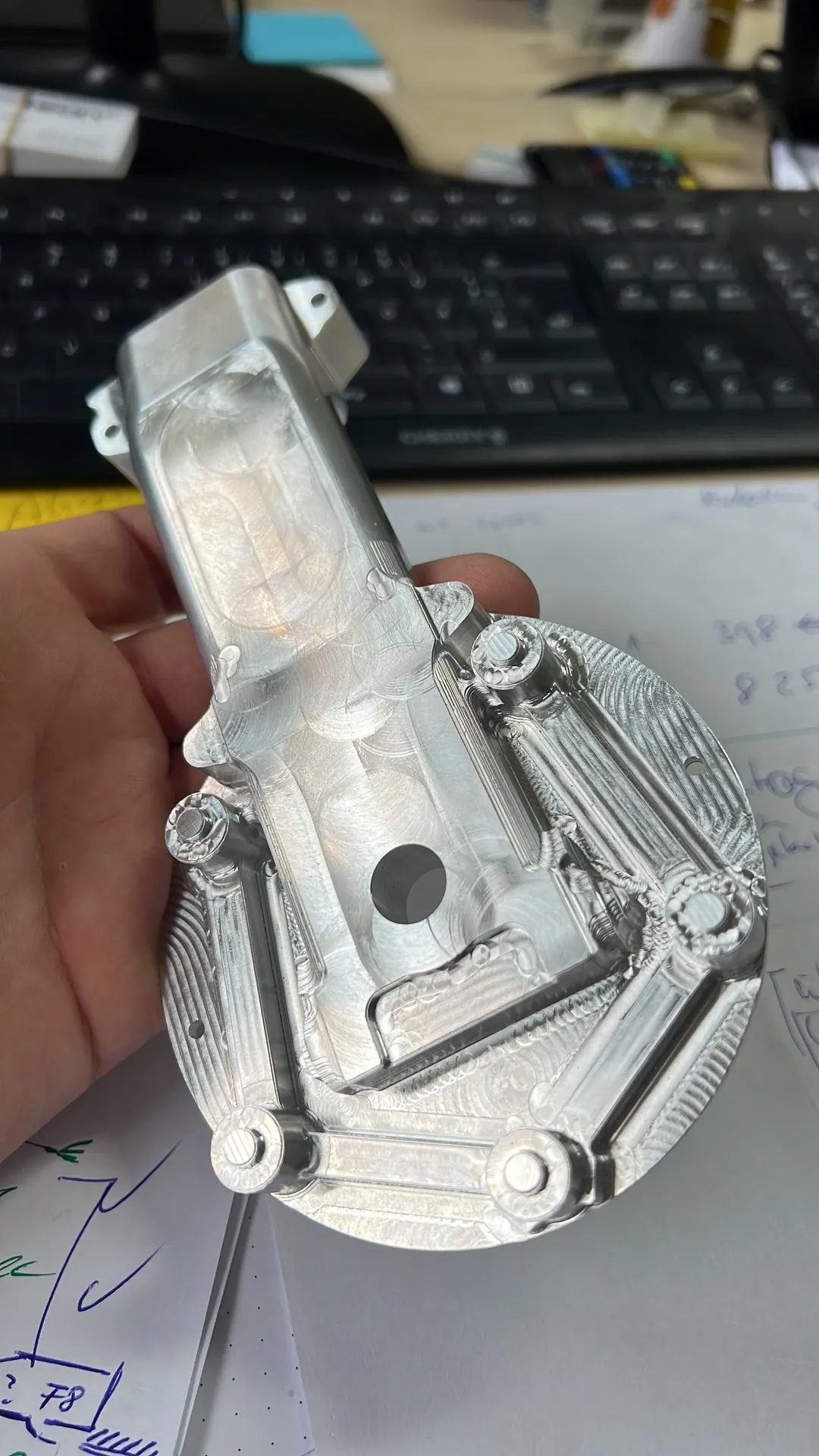

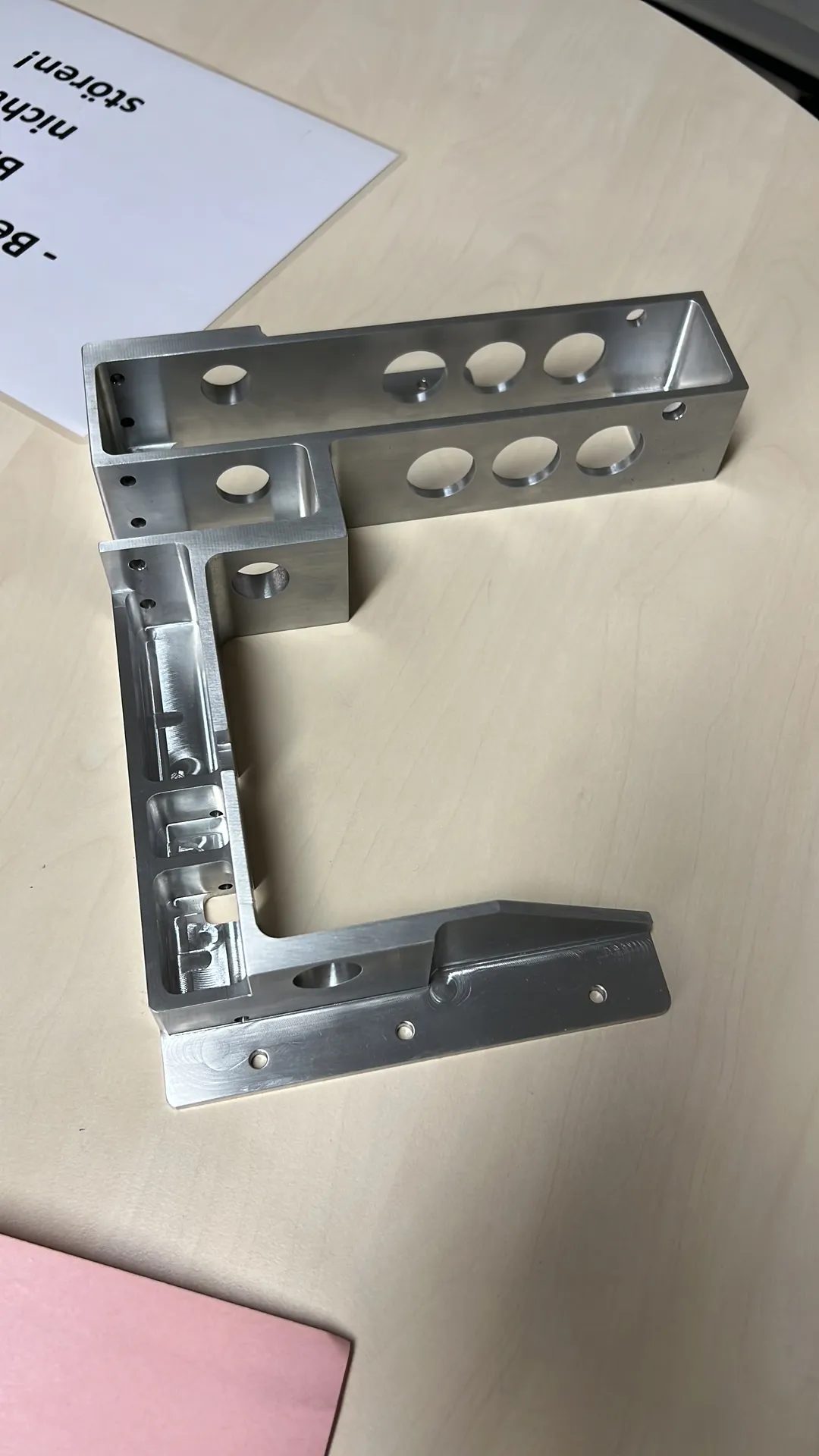

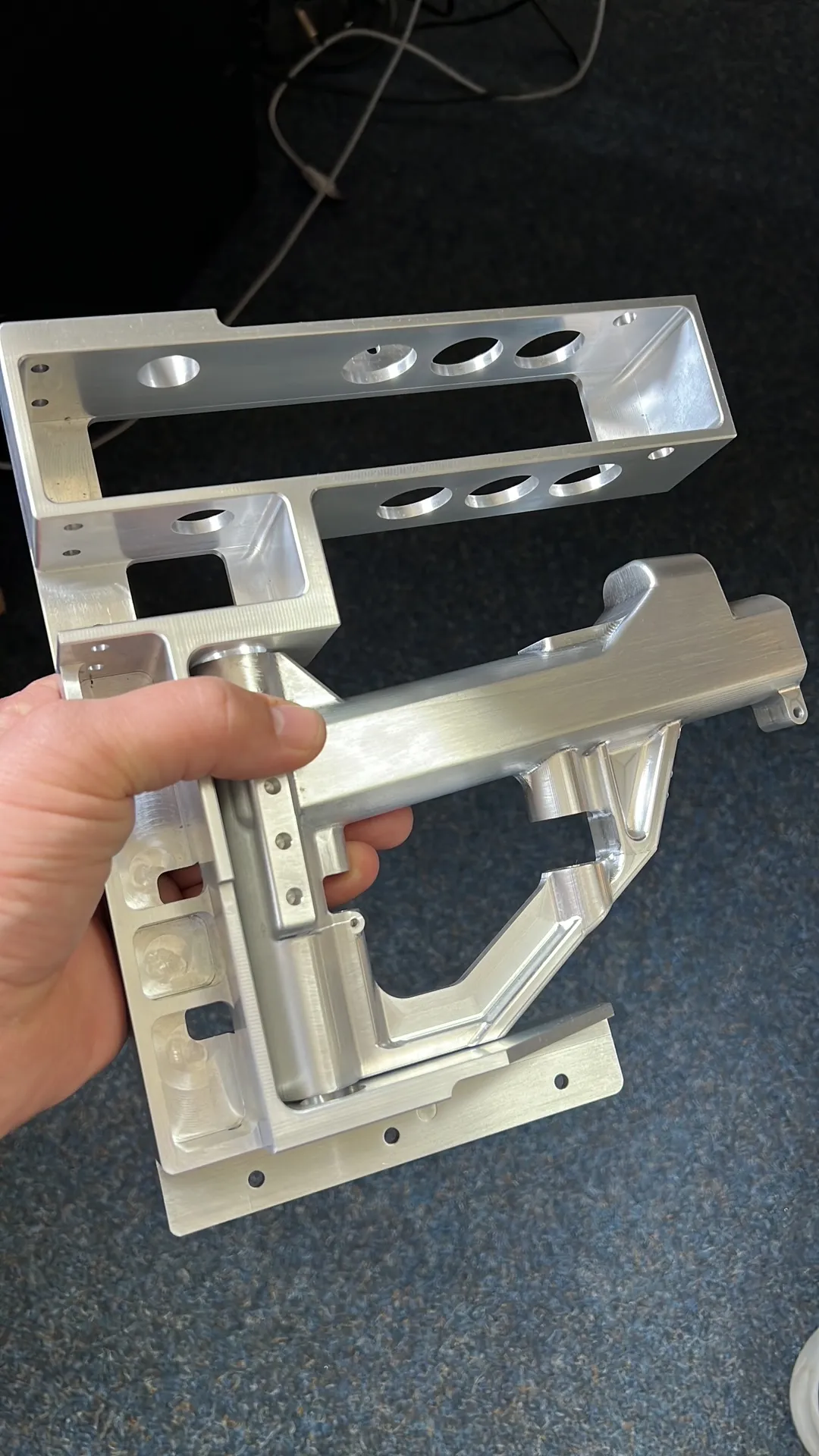

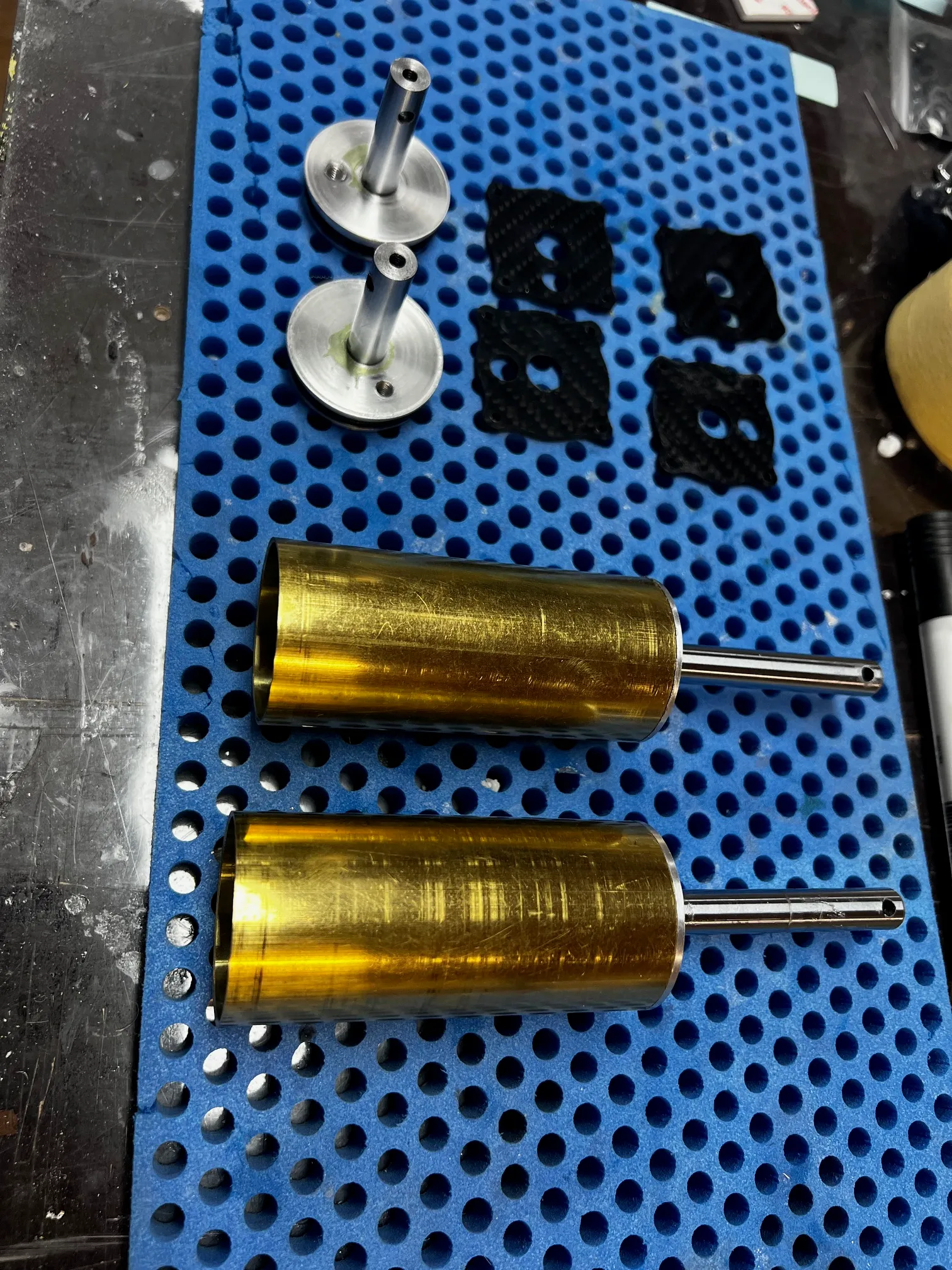

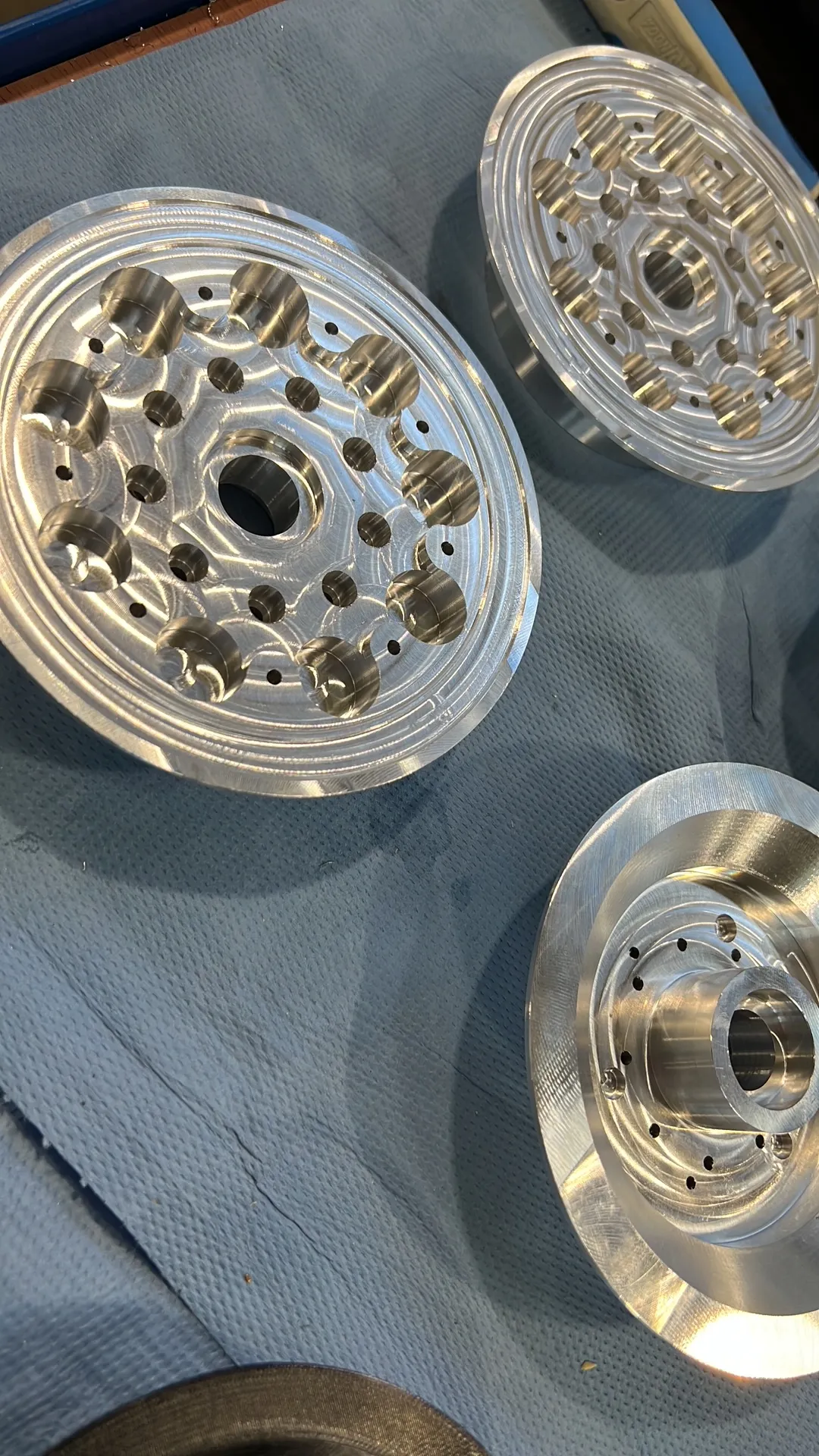

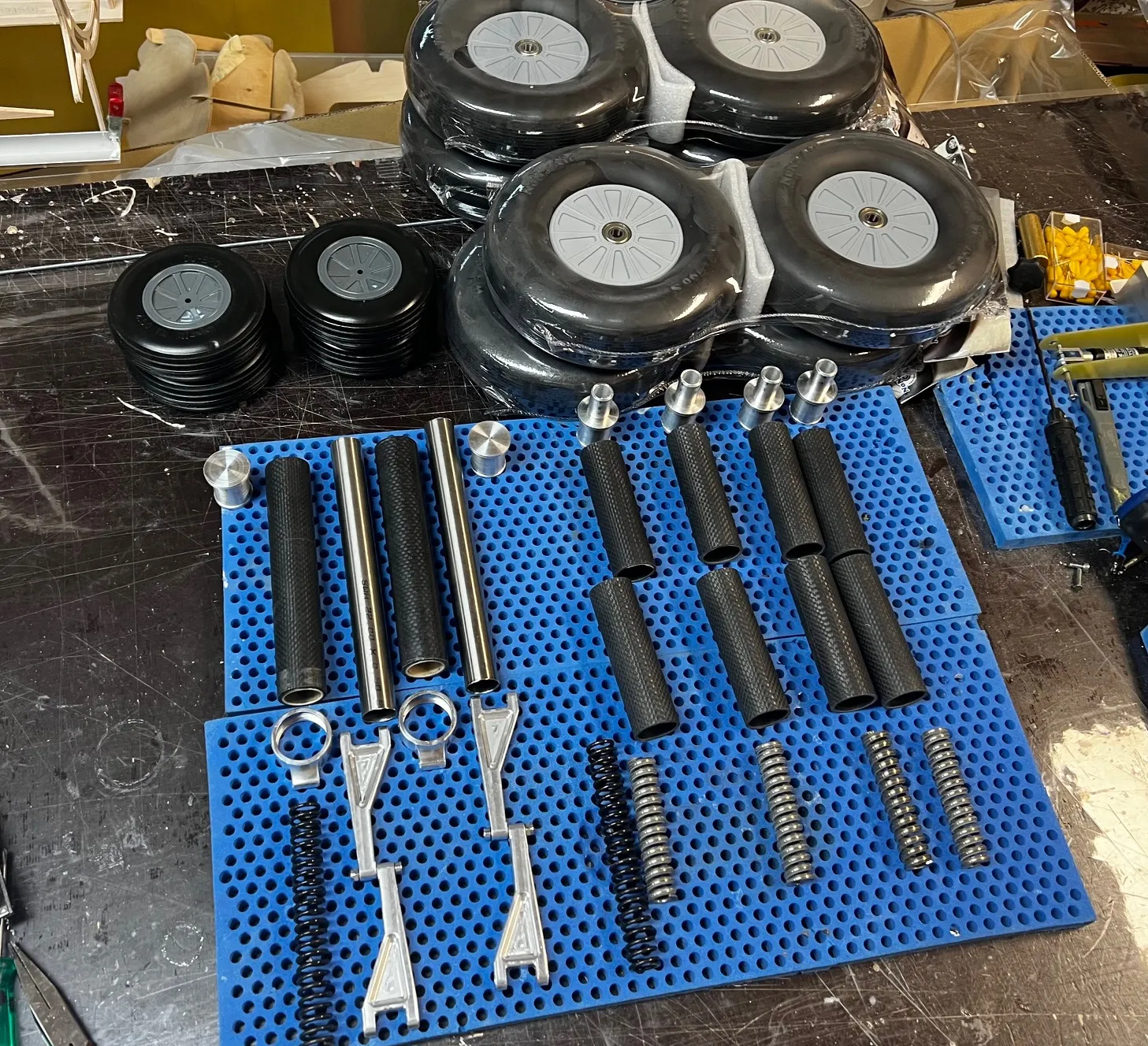

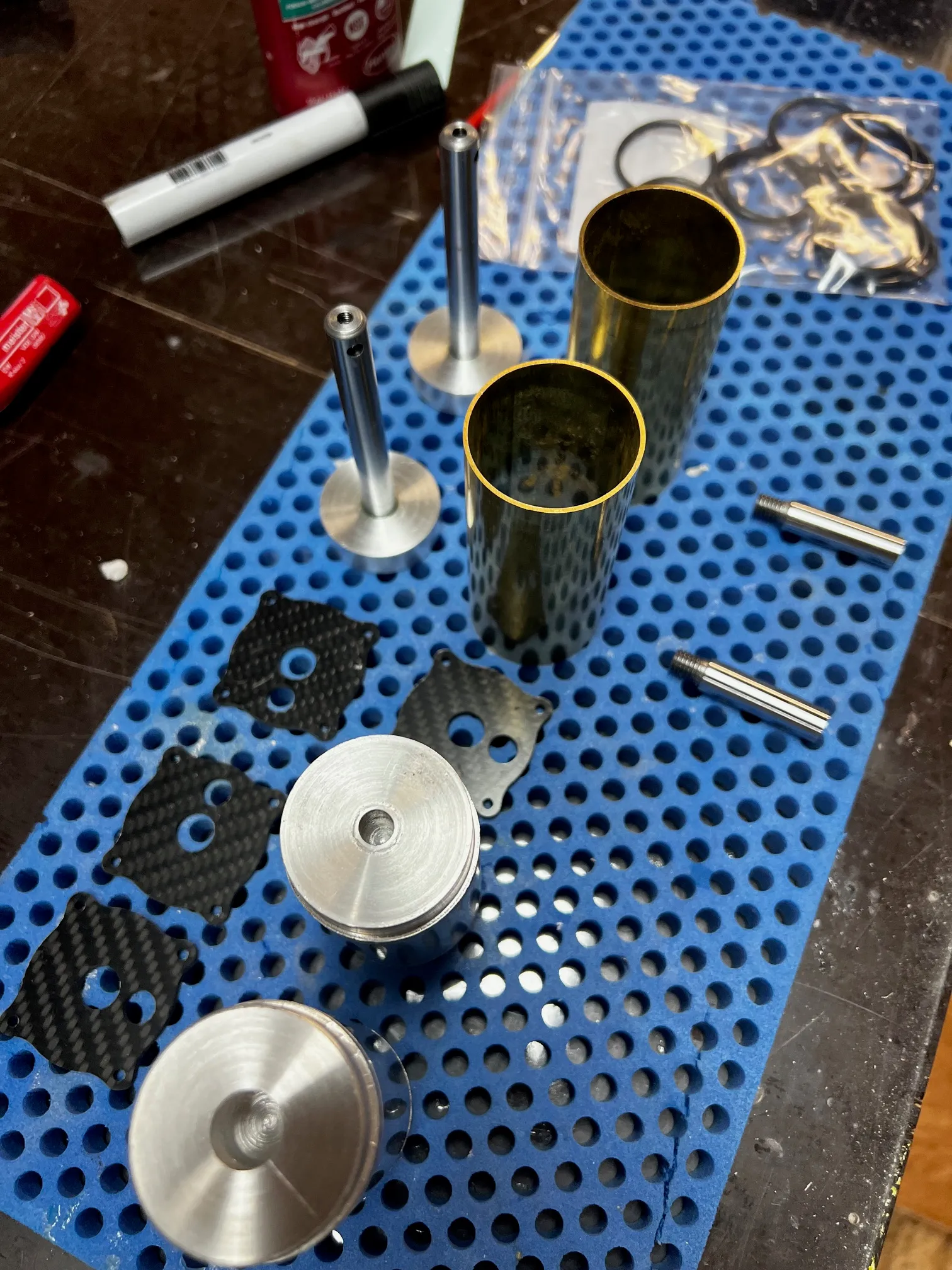

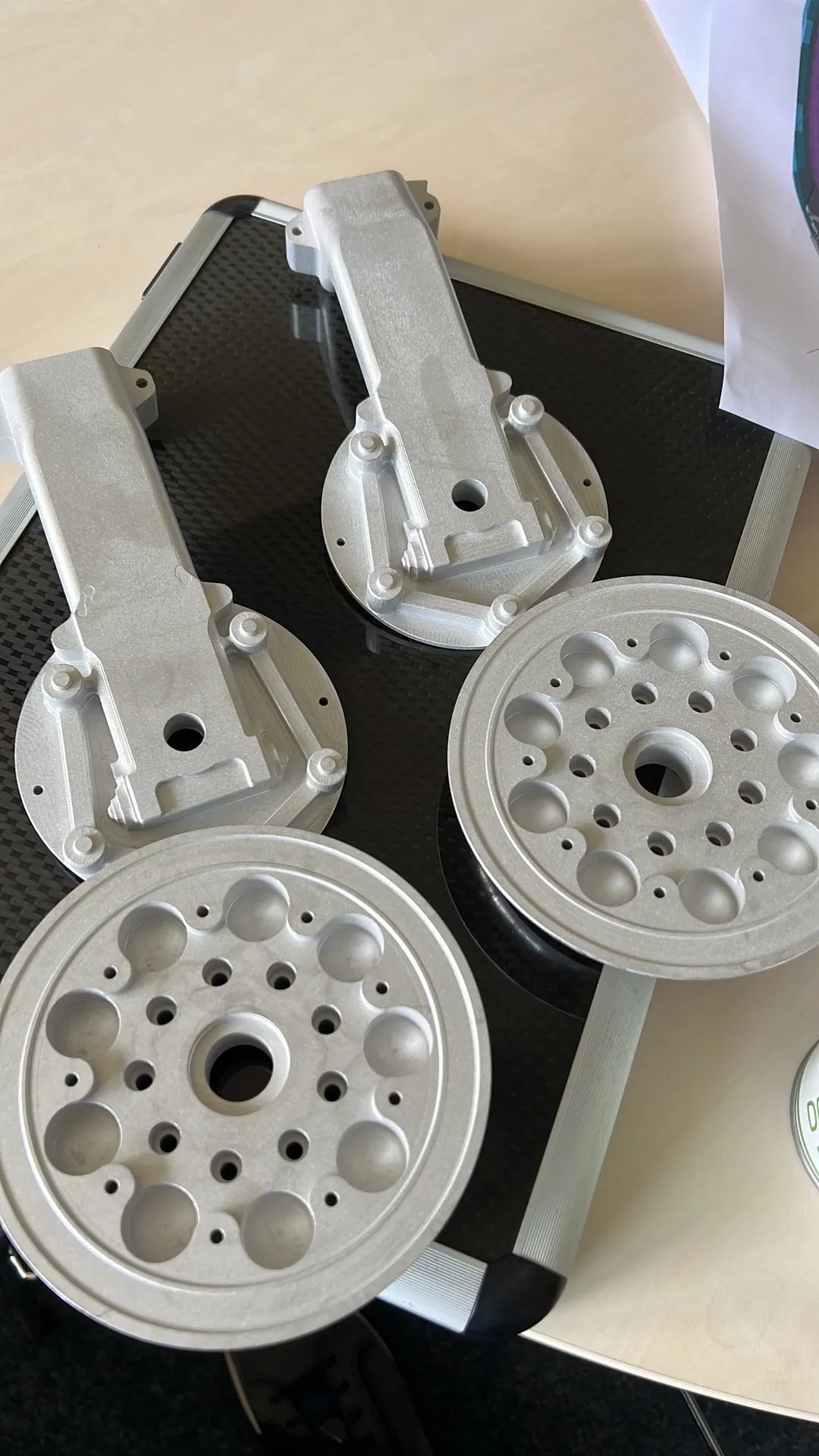

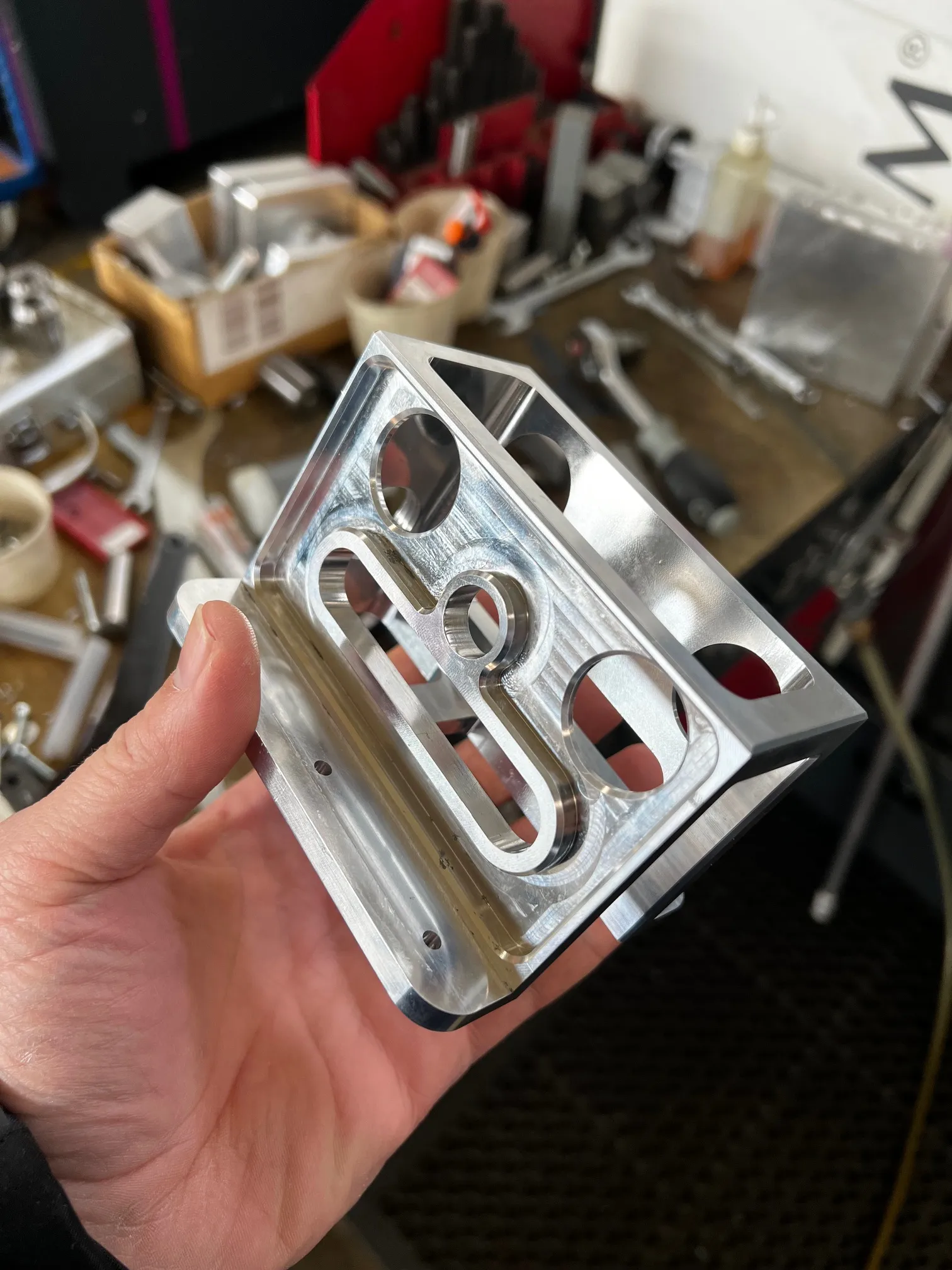

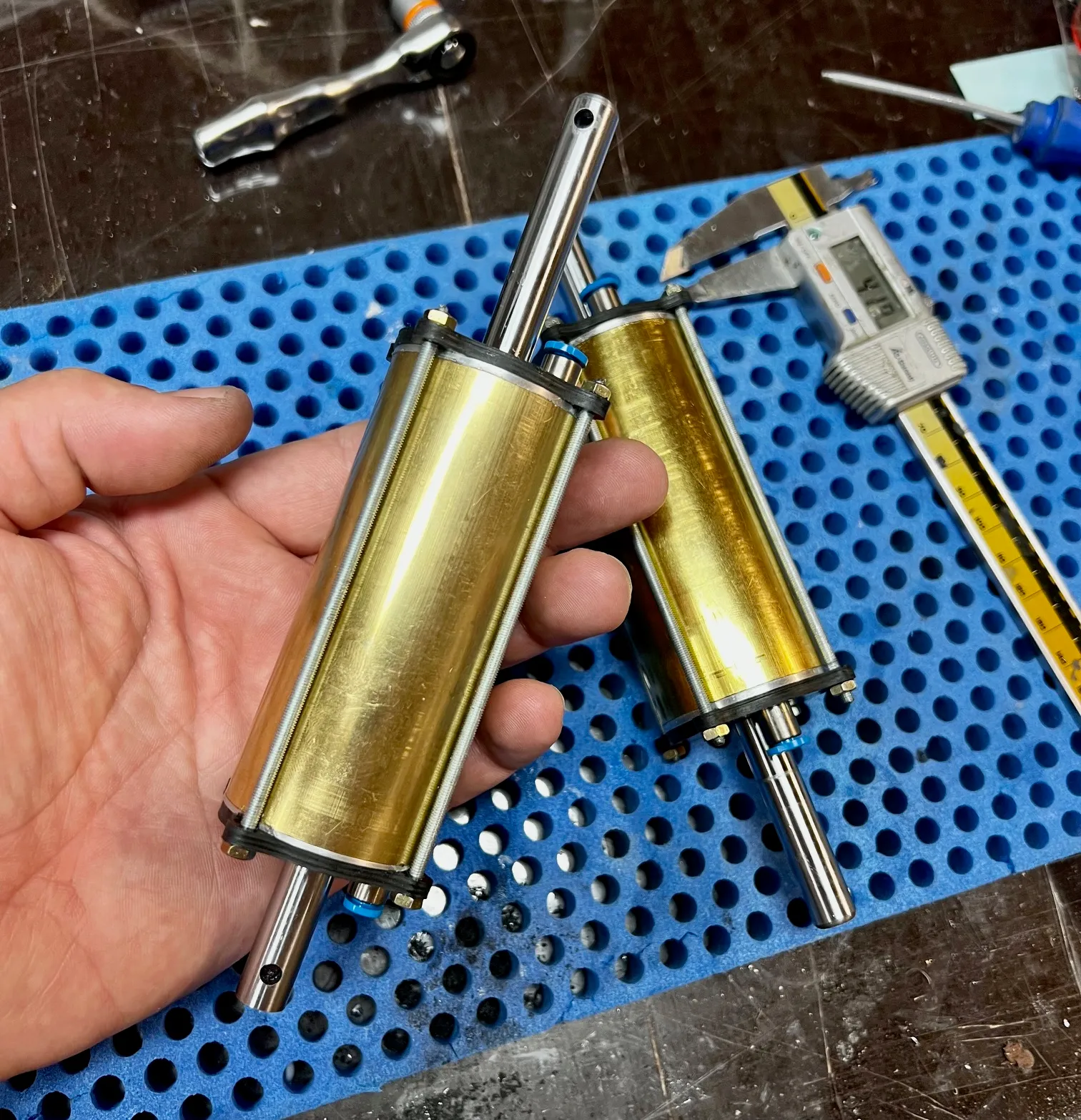

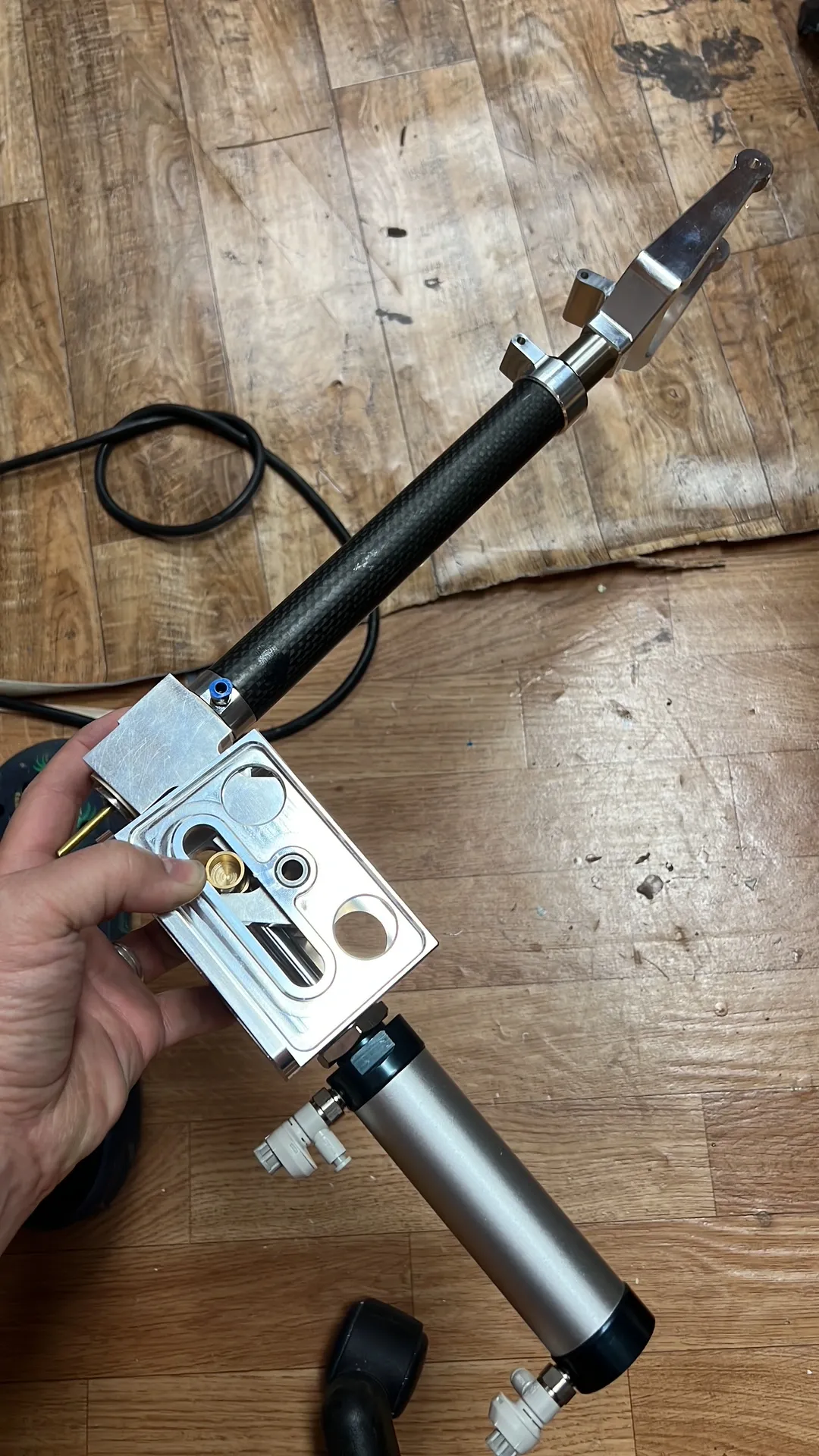

42CrMo4 tension/compression links, heat-treated, with bronze bushings; titanium struts and five-axis CNC parts to drawing. Surface hardness on roller faces; composite toolmaking for wheel forks and covers — full machining and mould-making stack for client programmes.
42CrMo4-Zug- und Druckstreben, wärmebehandelt, mit Bronze-Buchsen; Titanstreben und 5-Achs-CNC-Teile nach Zeichnung. Oberflächenhärte der Rollenflächen; Formenbau für Radgabeln und Abdeckungen aus Faserverbund — vollständige Zerspanungs- und Formenbau-Kette im Kundenauftrag.
Industrial model / Industriemodell
Rated for model duty. Belastbar im Modellbetrieb.

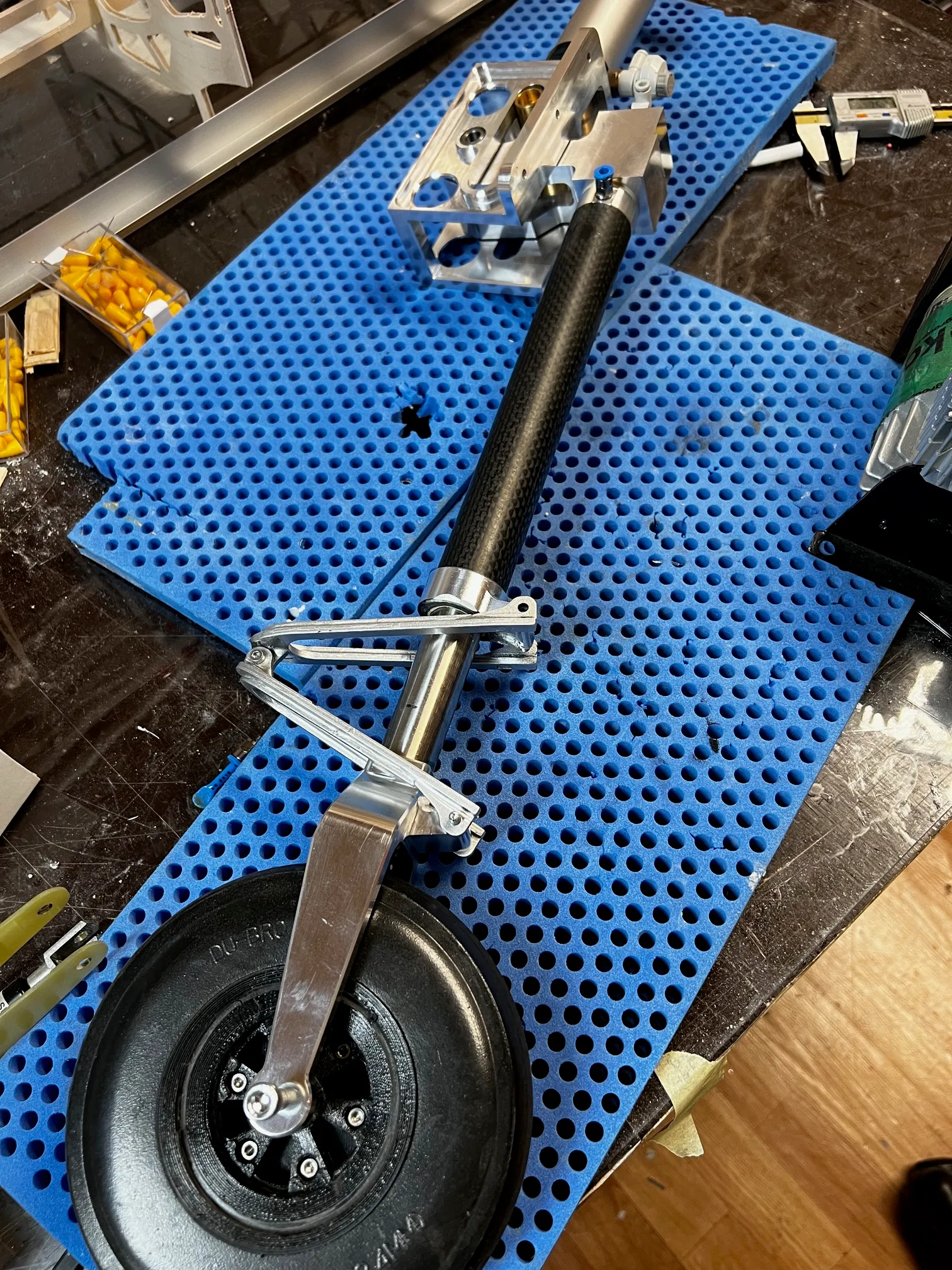

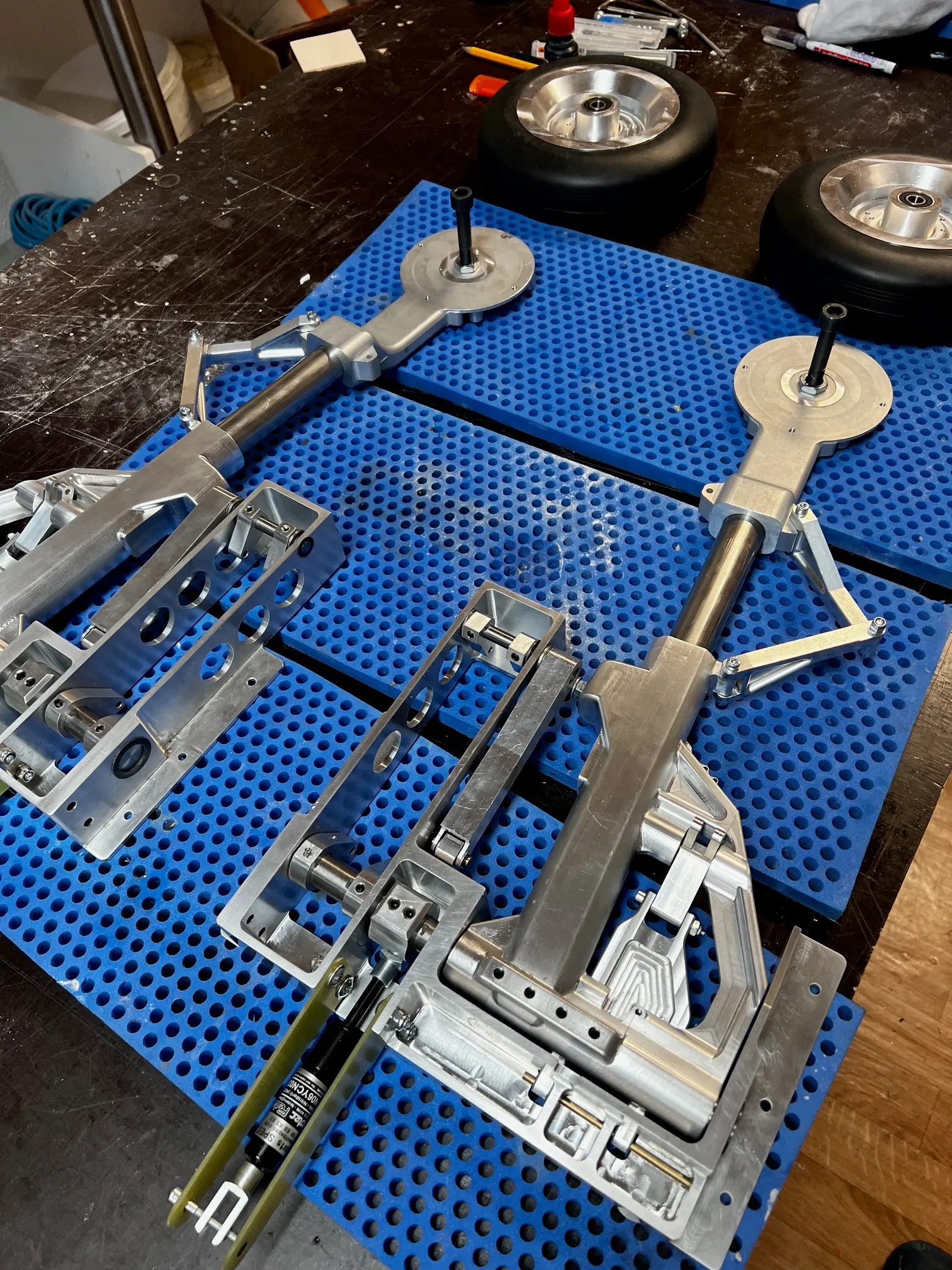

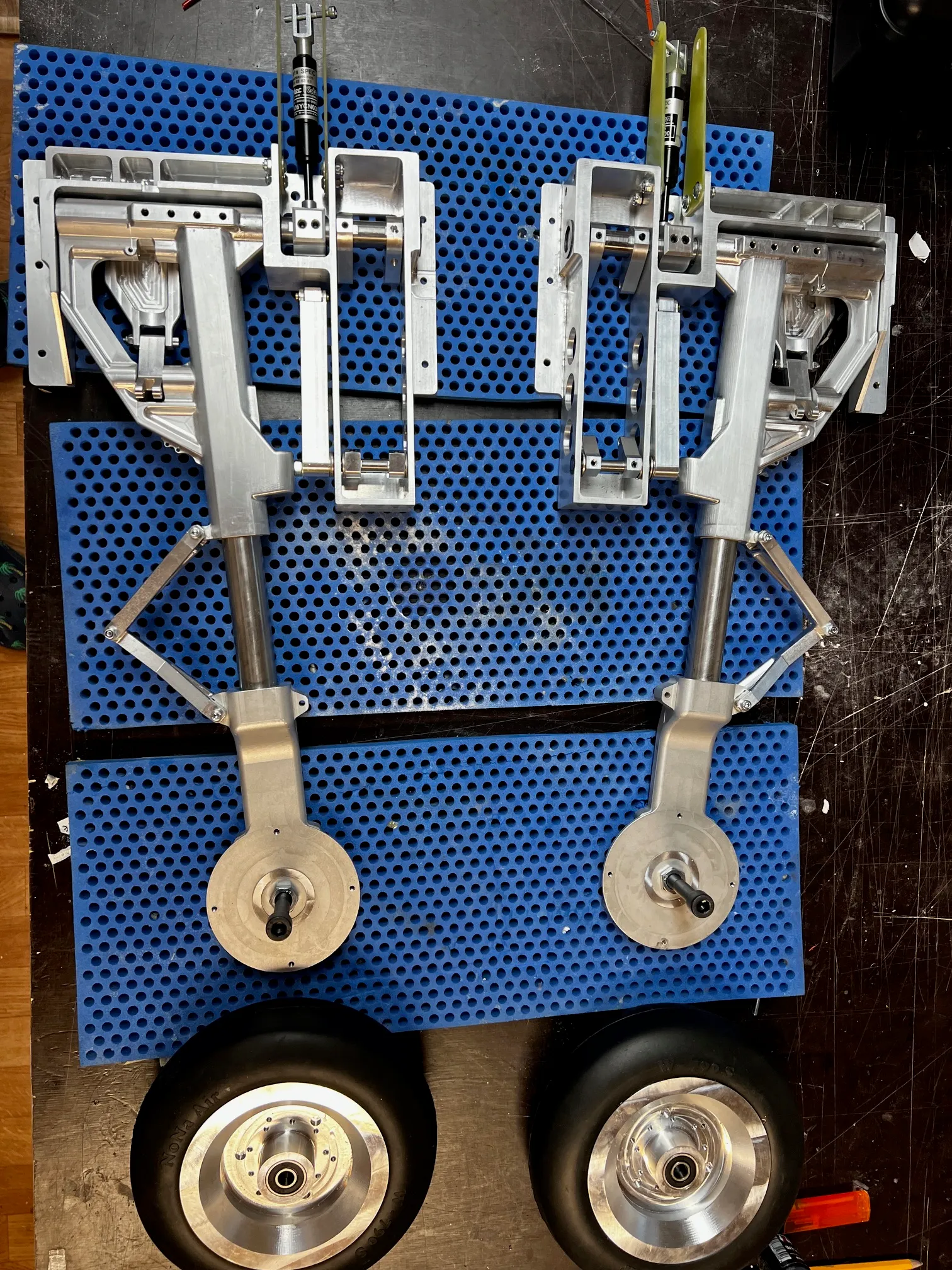

Progressive short stroke, fast unlock for model launch sequences — CNC-machined steel and titanium hardware with composite toolmaking, built to exact scale for jet models and drone prototypes.
Progressiver kurzer Federweg, schnelle Entriegelung für Modell-Starts — CNC-gefräste Stahl- und Titanbauteile mit Formenbau im Faserverbund, im exakten Maßstab für Jet-Modelle und Drohnen-Prototypen.
Project inquiry / Projektanfrage
Request CNC landing gear, composites and toolmaking for your jet model.
CNC-Fahrwerk, Faserverbund und Formenbau für Ihr Jet-Modell anfragen.
