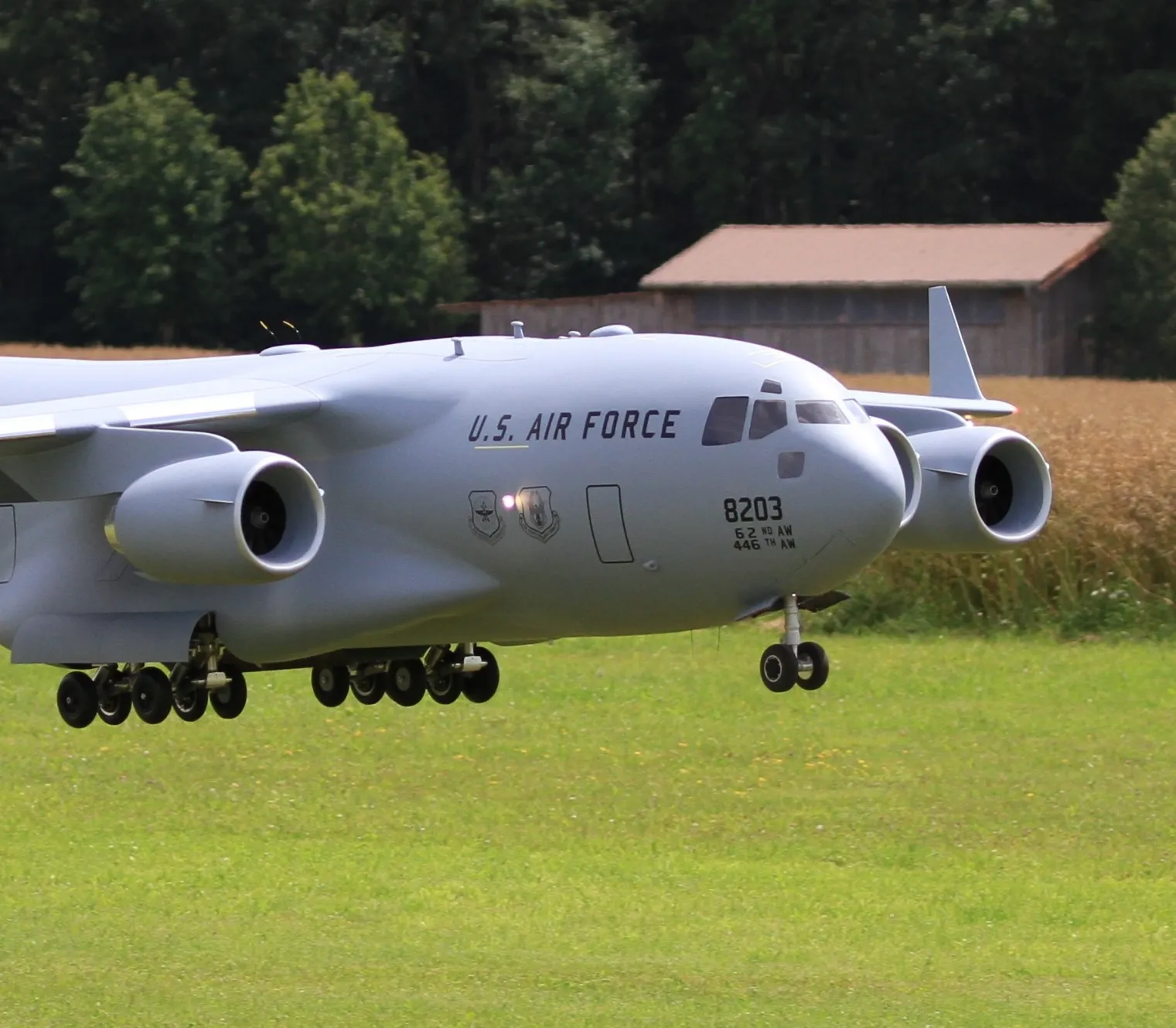

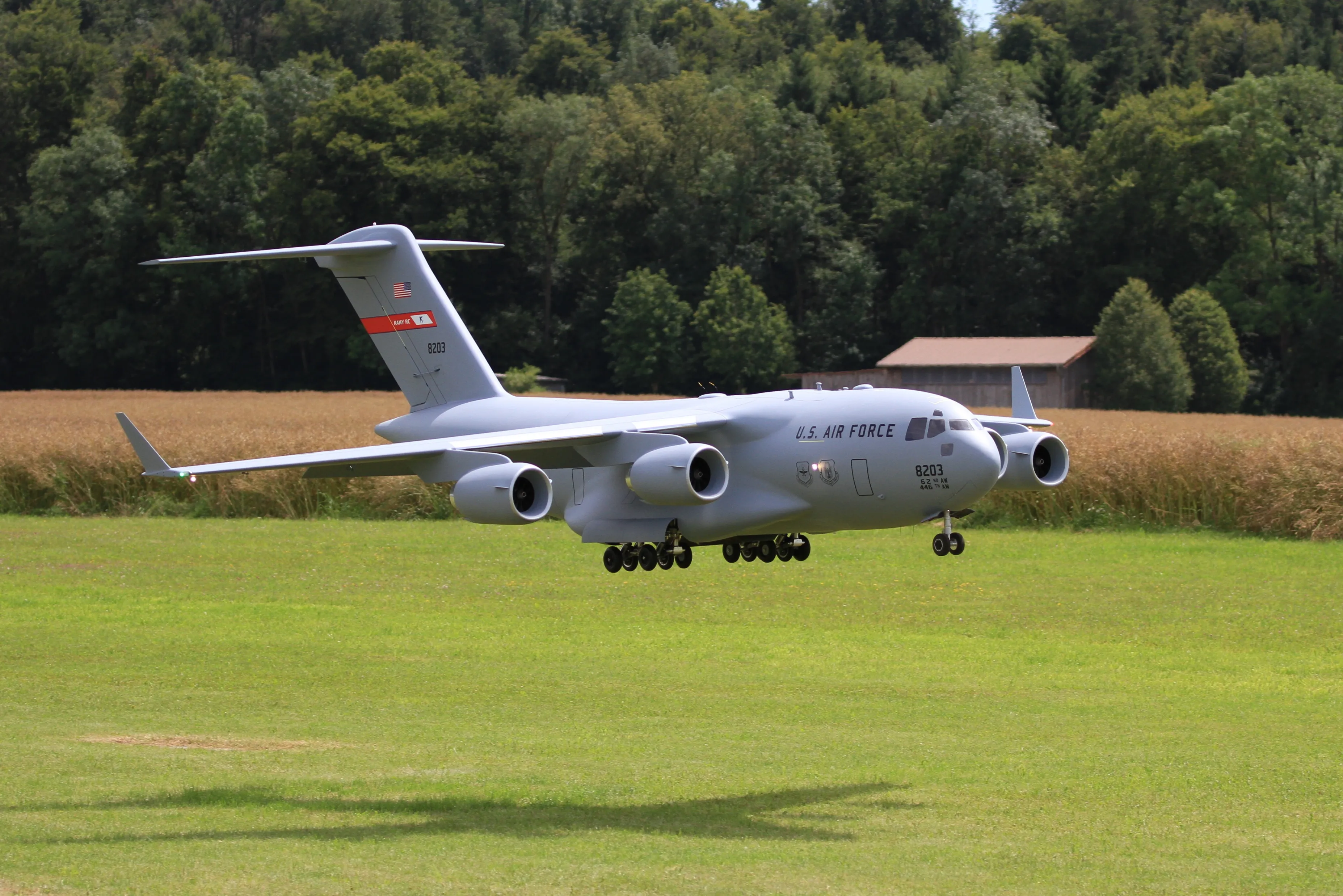

BOEING C-17
Large-scale model. Heavy-duty mechanics.
Großmodell. Schwerlast-Mechanik.
The challenge / Die Herausforderung
Robustness under model loads. Robustheit unter Modelllast.

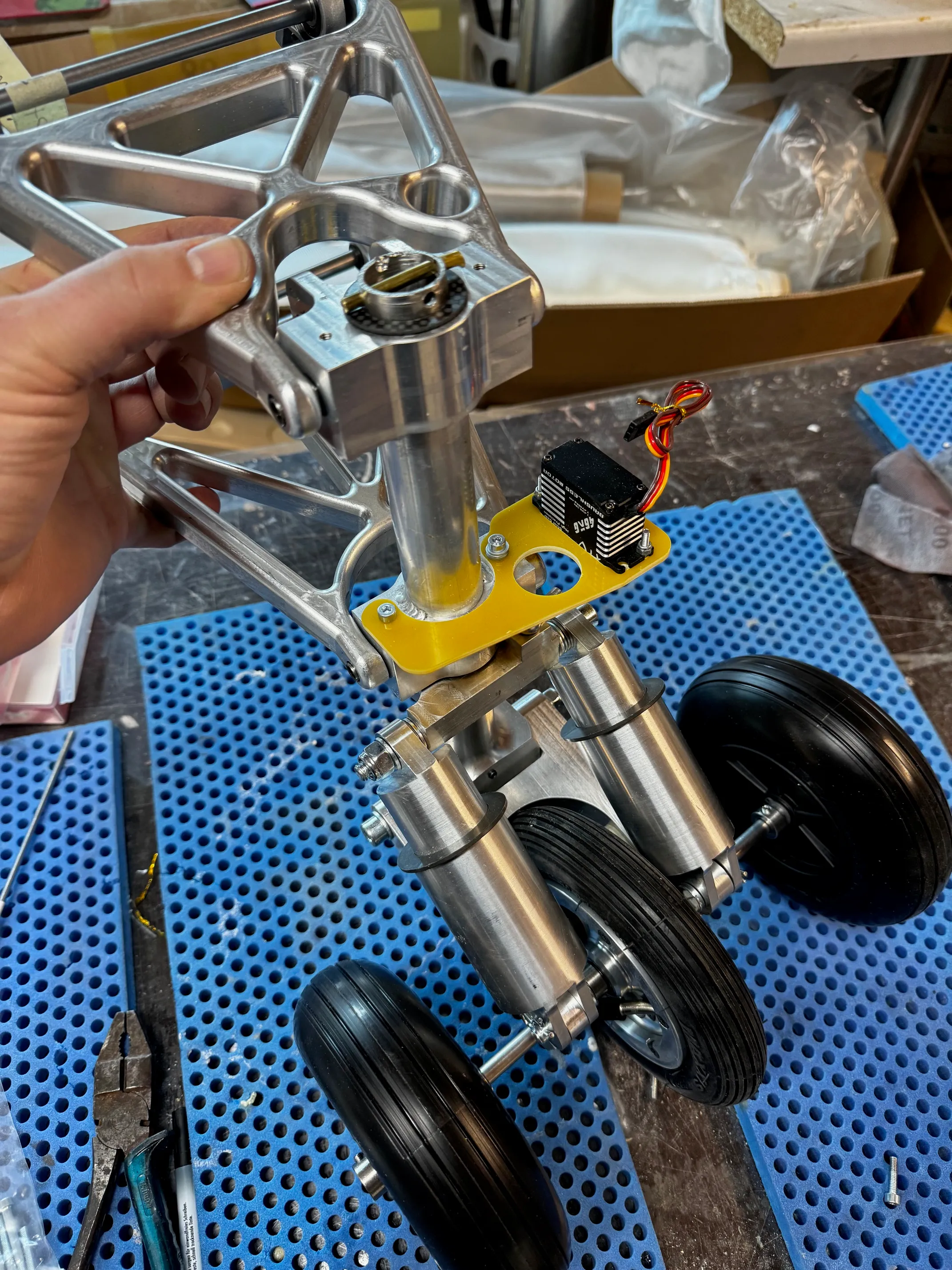

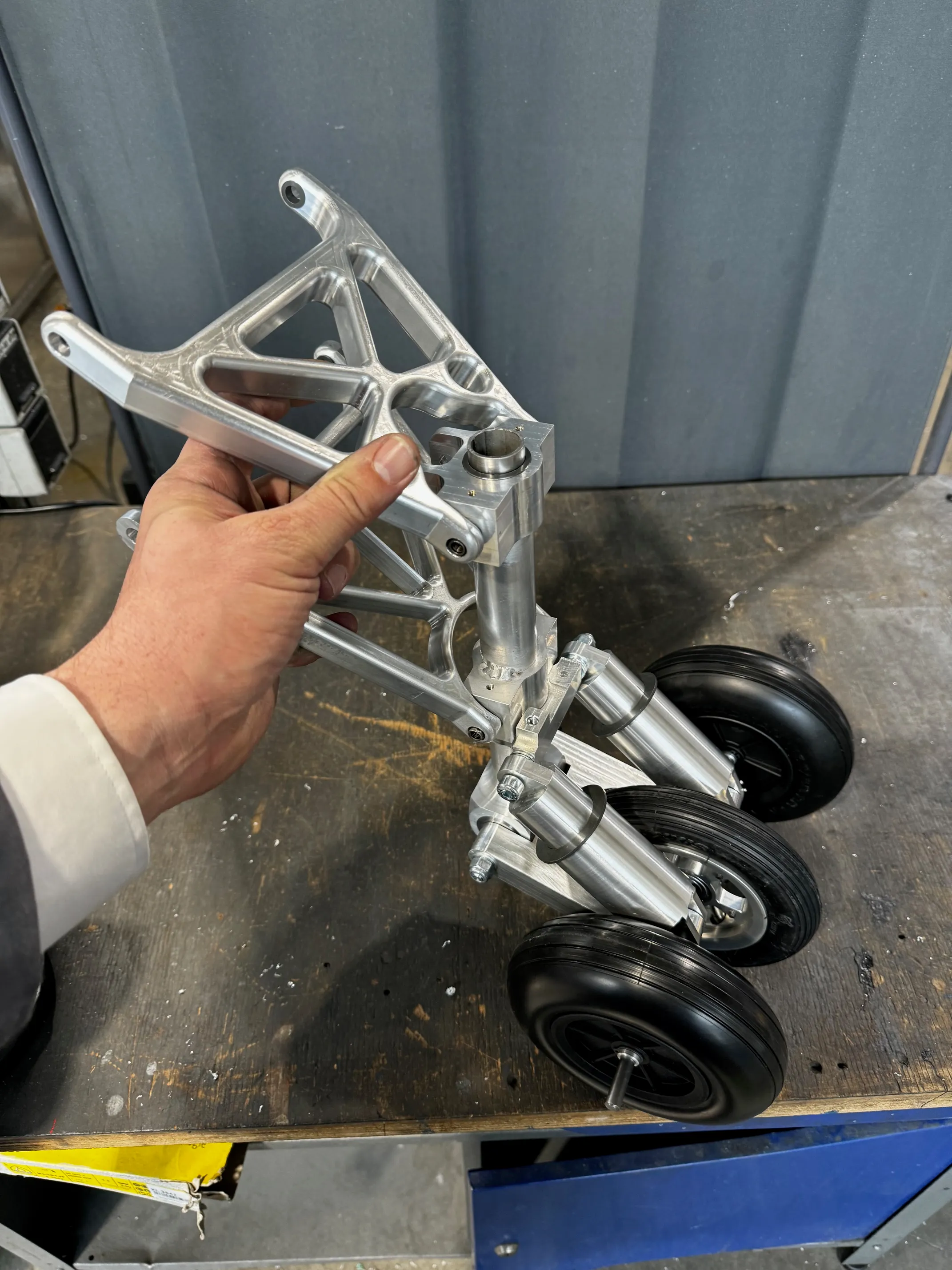

A four-wheel bogie must absorb launch and landing shocks on a heavy display model — for exhibition, prototype sign-off or wind-tunnel preparation. Geometry follows the reference aircraft; engineering is strictly at scale.
Eine vierfache Radaufhängung muss Stöße bei Start und Landung am schweren Ausstellungsmodell abfangen — für Schau, Prototypenfreigabe oder Windkanal-Vorbereitung. Geometrie am Vorbild orientiert, Auslegung konsequent im Maßstab.
Engineering / Engineering
Structure, welding, CNC. Struktur, Schweißbau, CNC.

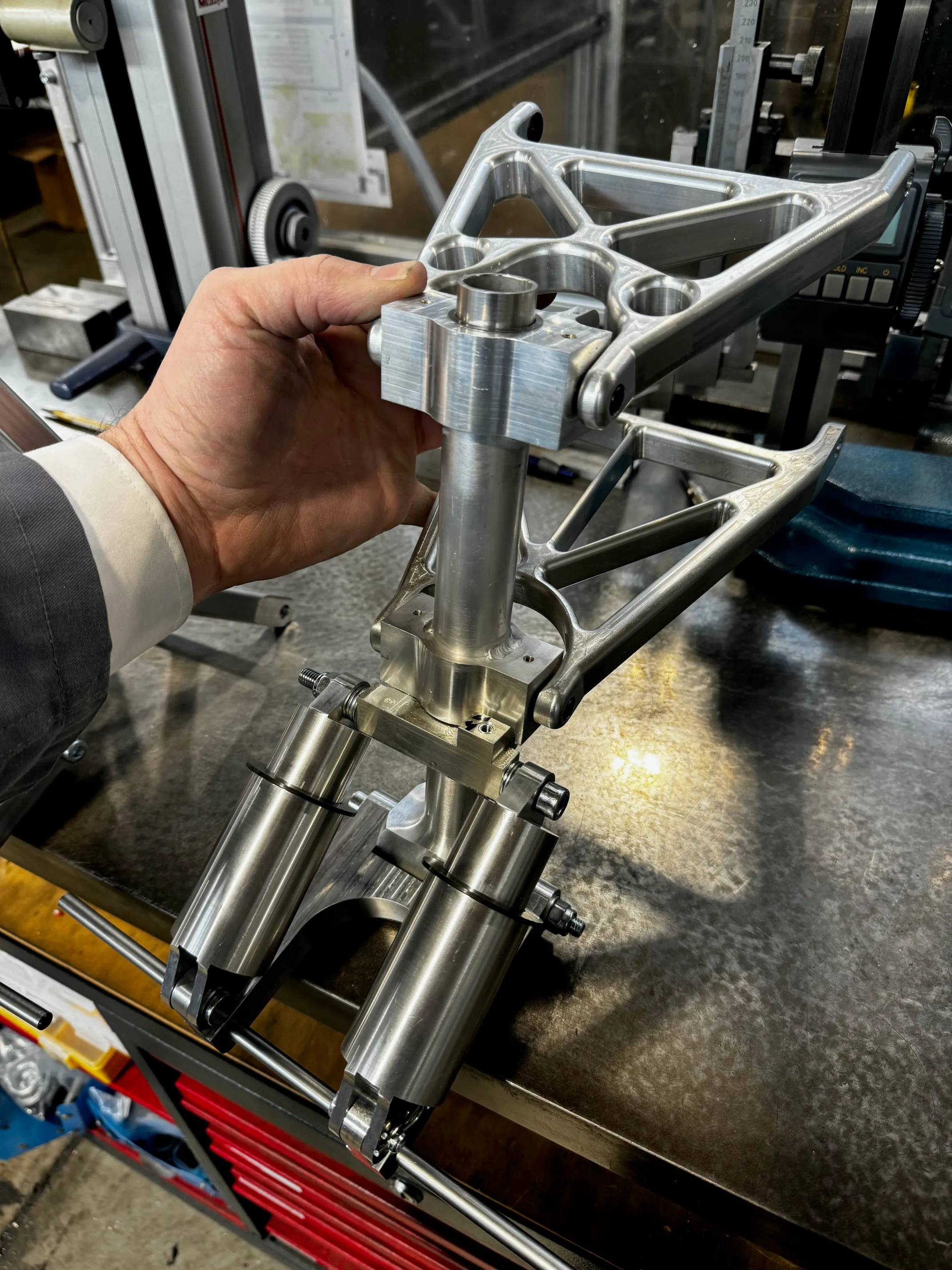

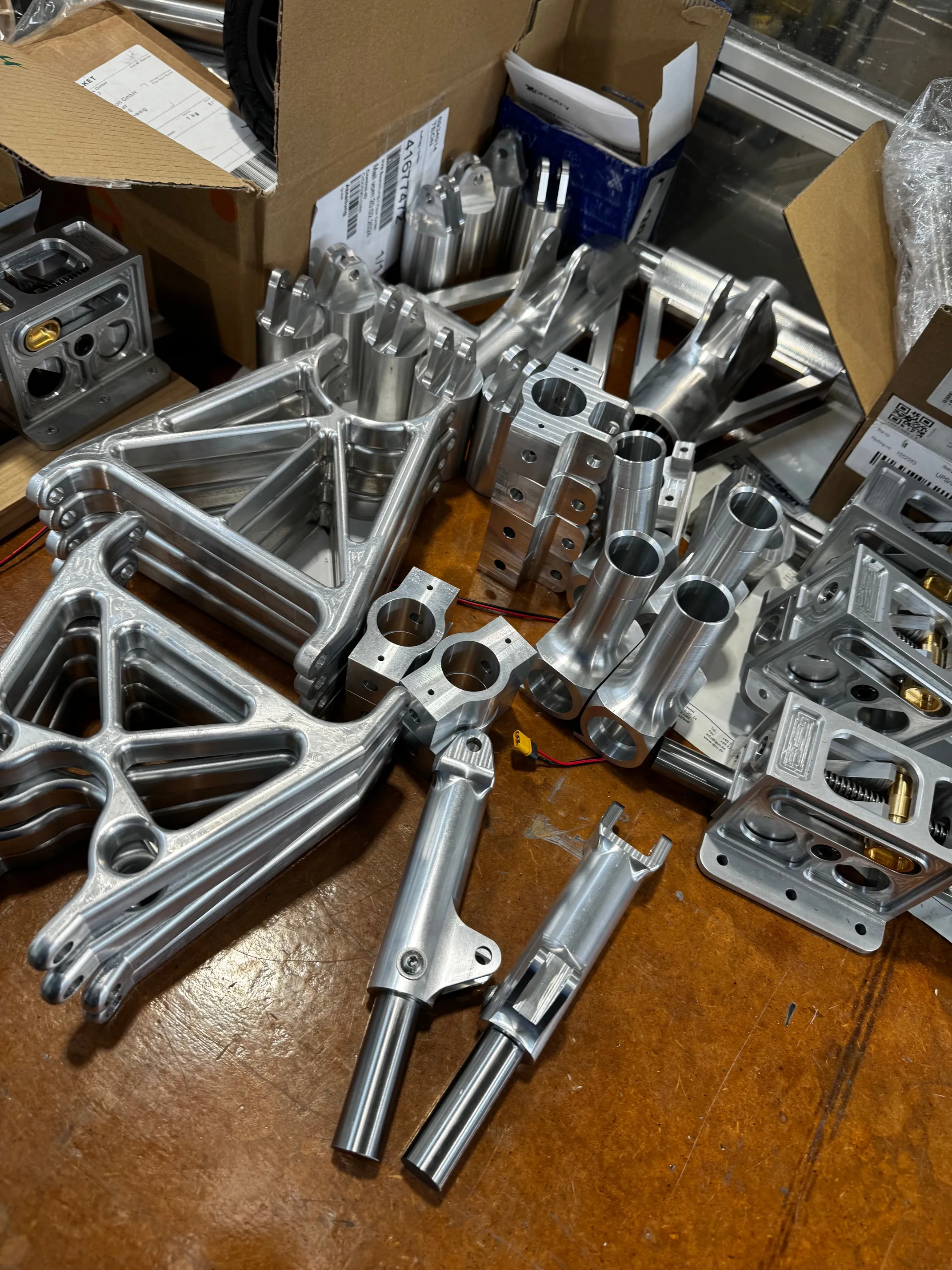

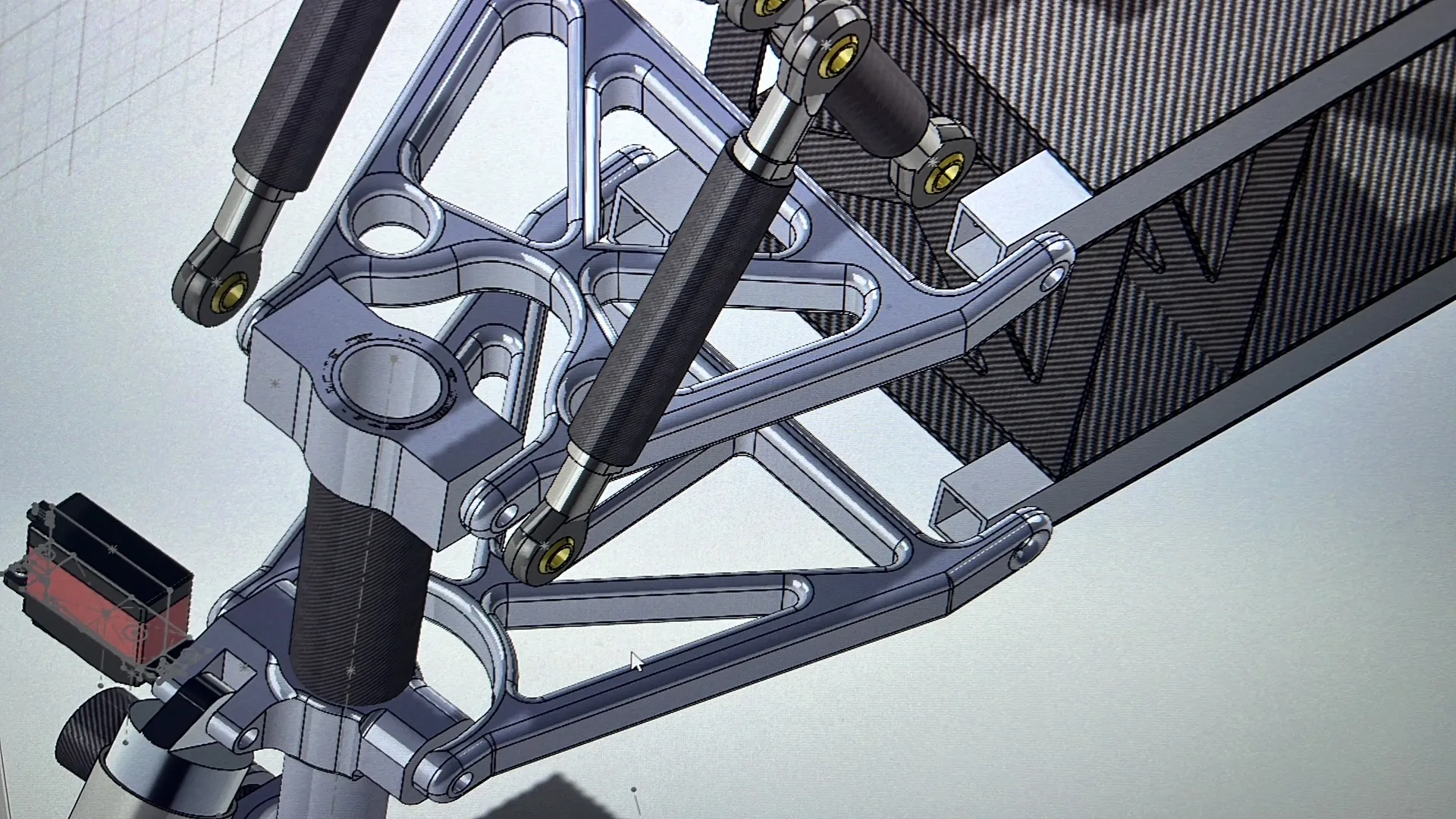

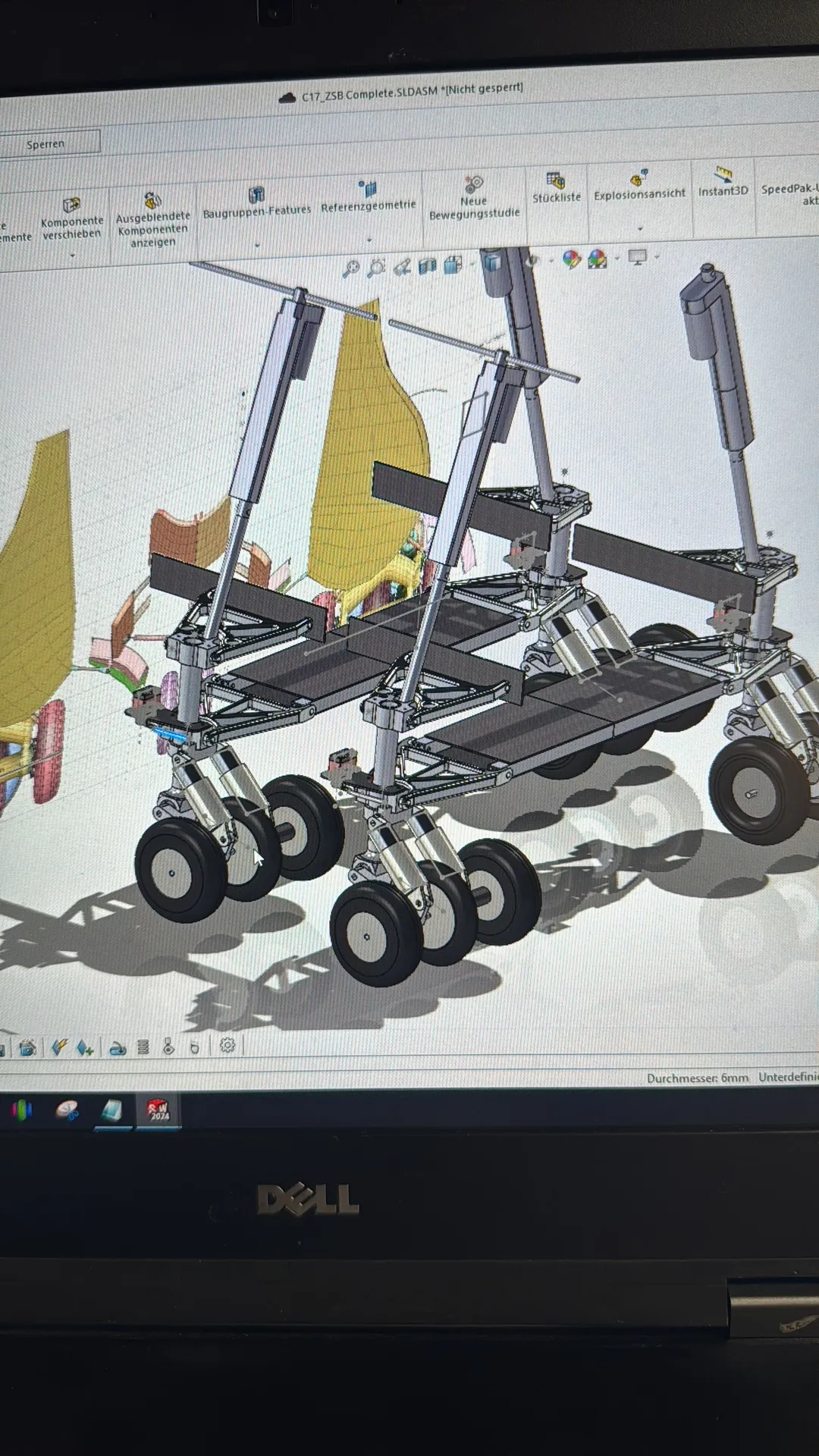

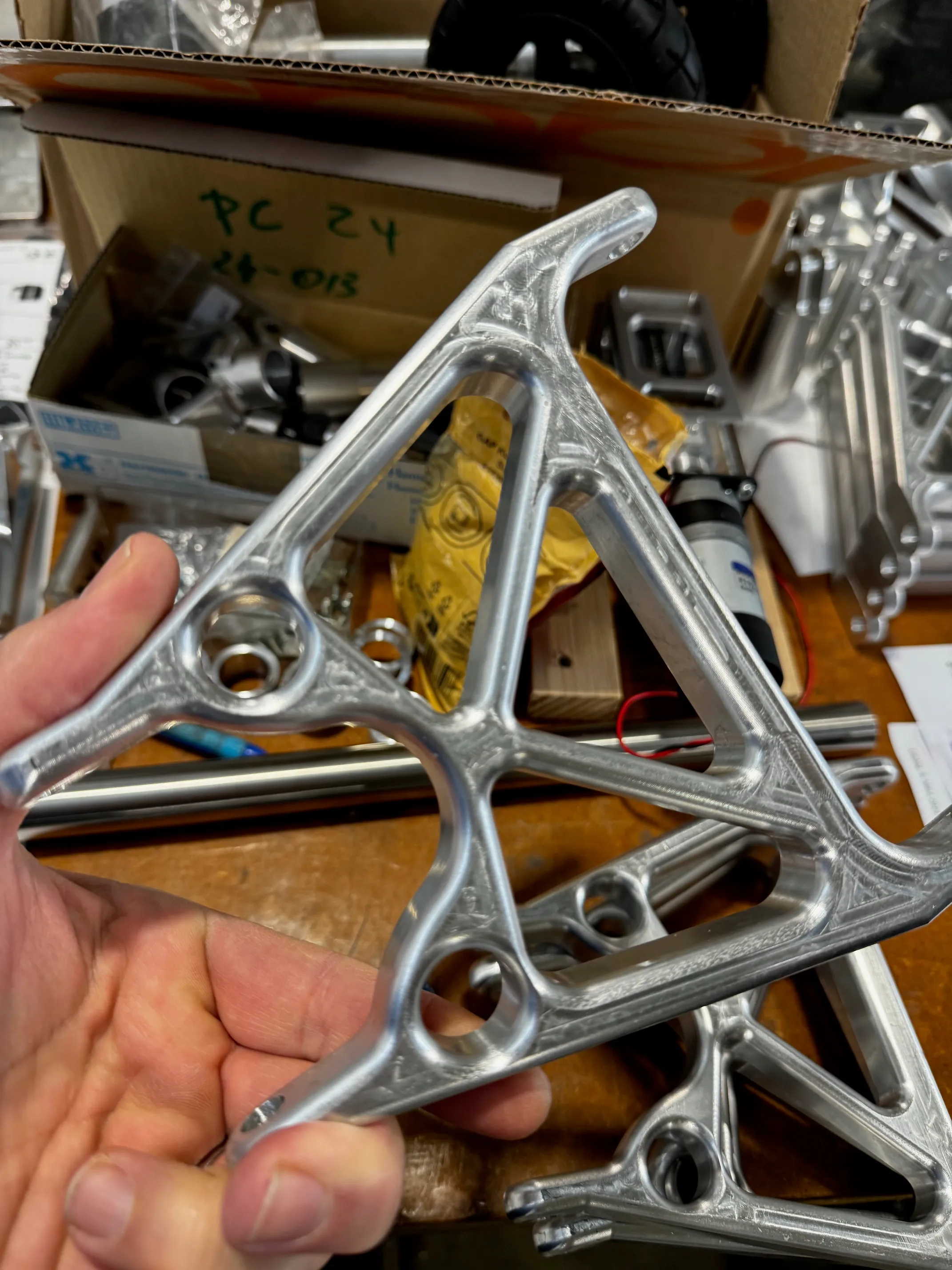

Parametric CAD bogie frames, FEM at critical transitions, ±0.05 mm tolerance chain. Toolmaking, MAG welding and CNC of load-bearing substructures — industrial depth, not hobby scale.
Parametrische CAD-Bogenträger, FEM an kritischen Übergängen, Toleranzkette ±0,05 mm. Formenbau, MAG-Schweißbau und CNC tragender Unterstrukturen — industrielle Fertigungstiefe statt Hobbymaßstab.
Industrial model / Industriemodell
Field-proven model mechanics. Einsatzfeste Modellmechanik.
Hard-landing relief and removable wheel modules — conceived for maintenance on the functional model and drone integration, not for military flight operations.
Entlastung bei harten Modell-Landungen, demontierbare Radgruppen — konzipiert für Wartung am Funktionsmodell und Drohnen-Integration, nicht für militärischen Flugbetrieb.
Project inquiry / Projektanfrage
Request heavy-duty landing gear for your scale model.
Schwerlast-Fahrwerk für Ihr Großmodell anfragen.
