BOEING 777
Industrial model. Precision landing gear.
Industriemodell. Präzisions-Fahrwerk.
The challenge / Die Herausforderung
Heavy loads at scale. Schwerlast im exakten Maßstab.

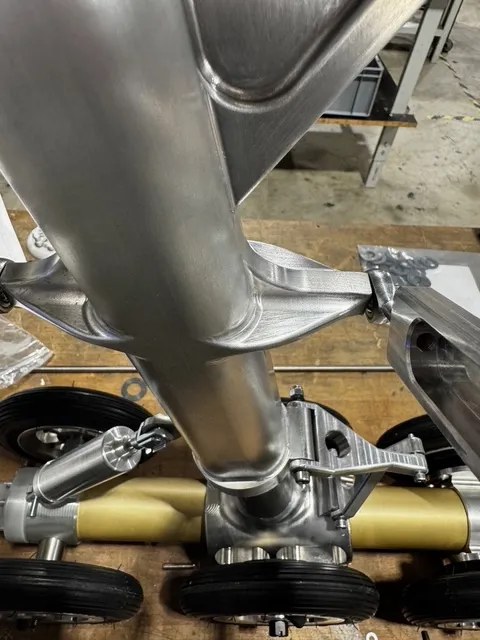

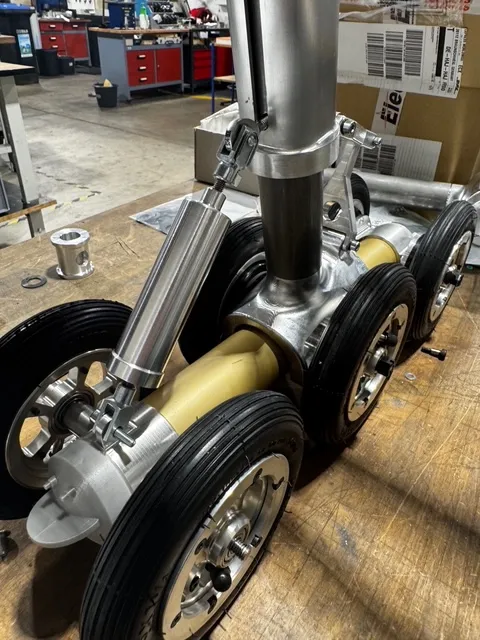

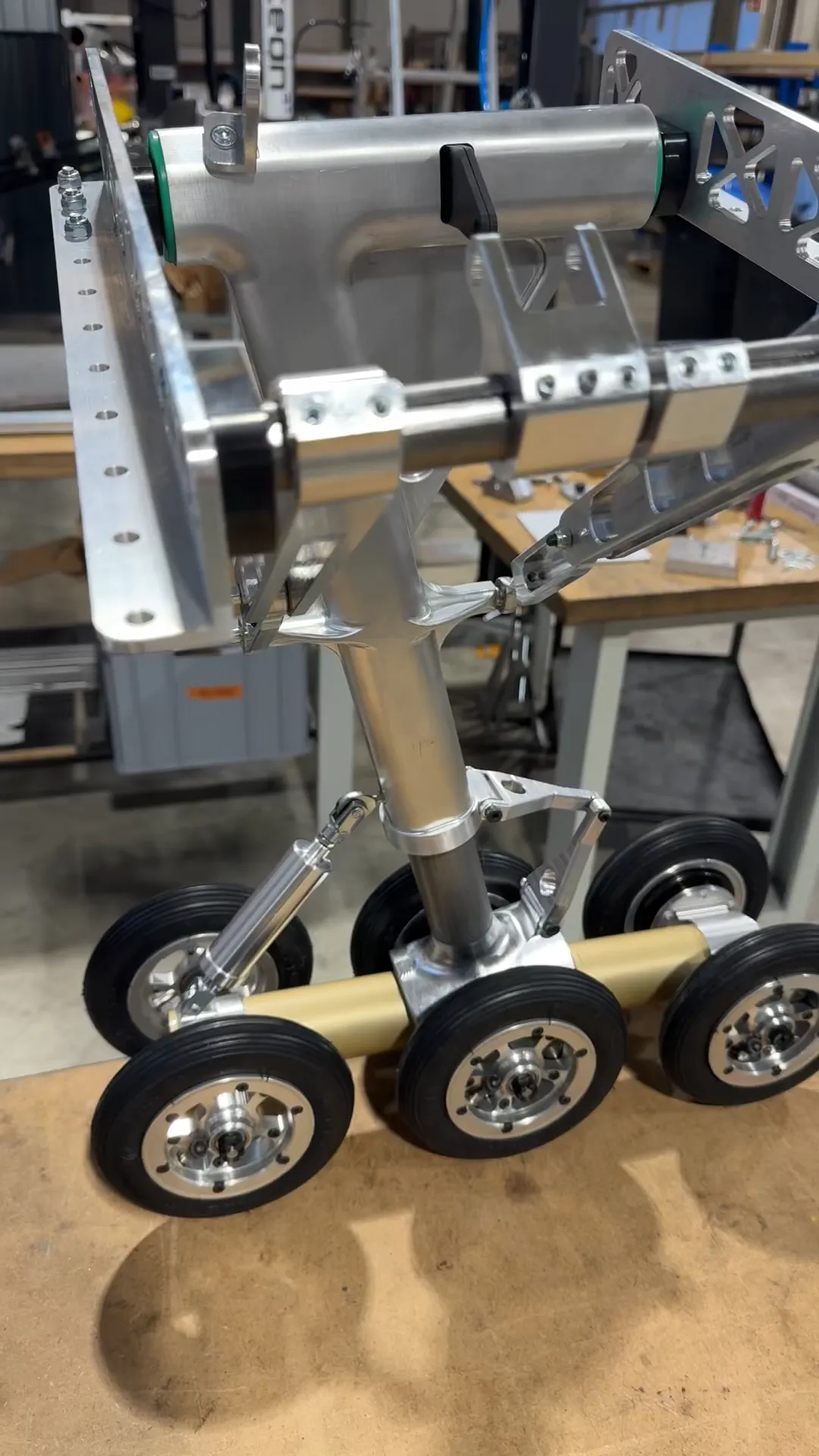

A six-wheel main gear kinematic was developed for an industrial display model. The asymmetric truck must absorb touchdown loads at scale — with maximum fidelity and zero play in all joints. Engineering deliverable, not certified aircraft hardware.
Für ein industrielles Großmodell wurde eine sechsachsige Hauptfahrwerkskinematik entwickelt. Die asymmetrische Schwinge muss Landekräfte im Modellmaßstab aufnehmen — bei maximaler Scale-Treue und ohne Spiel in den Gelenken. Ingenieursleistung im Auftrag, kein zugelassenes Luftfahrtbauteil.
Engineering / Engineering
CAD, FEM, CNC. CAD, FEM, CNC.

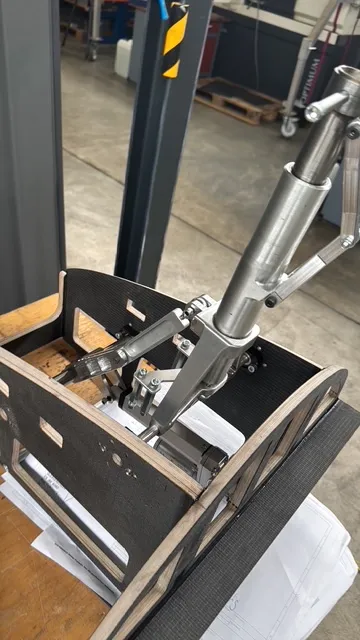

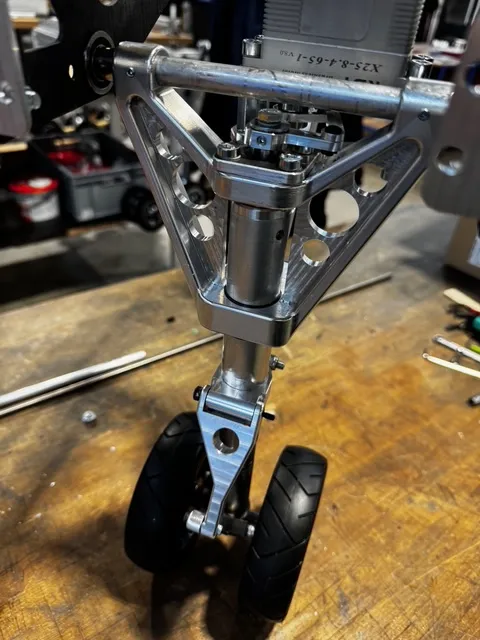

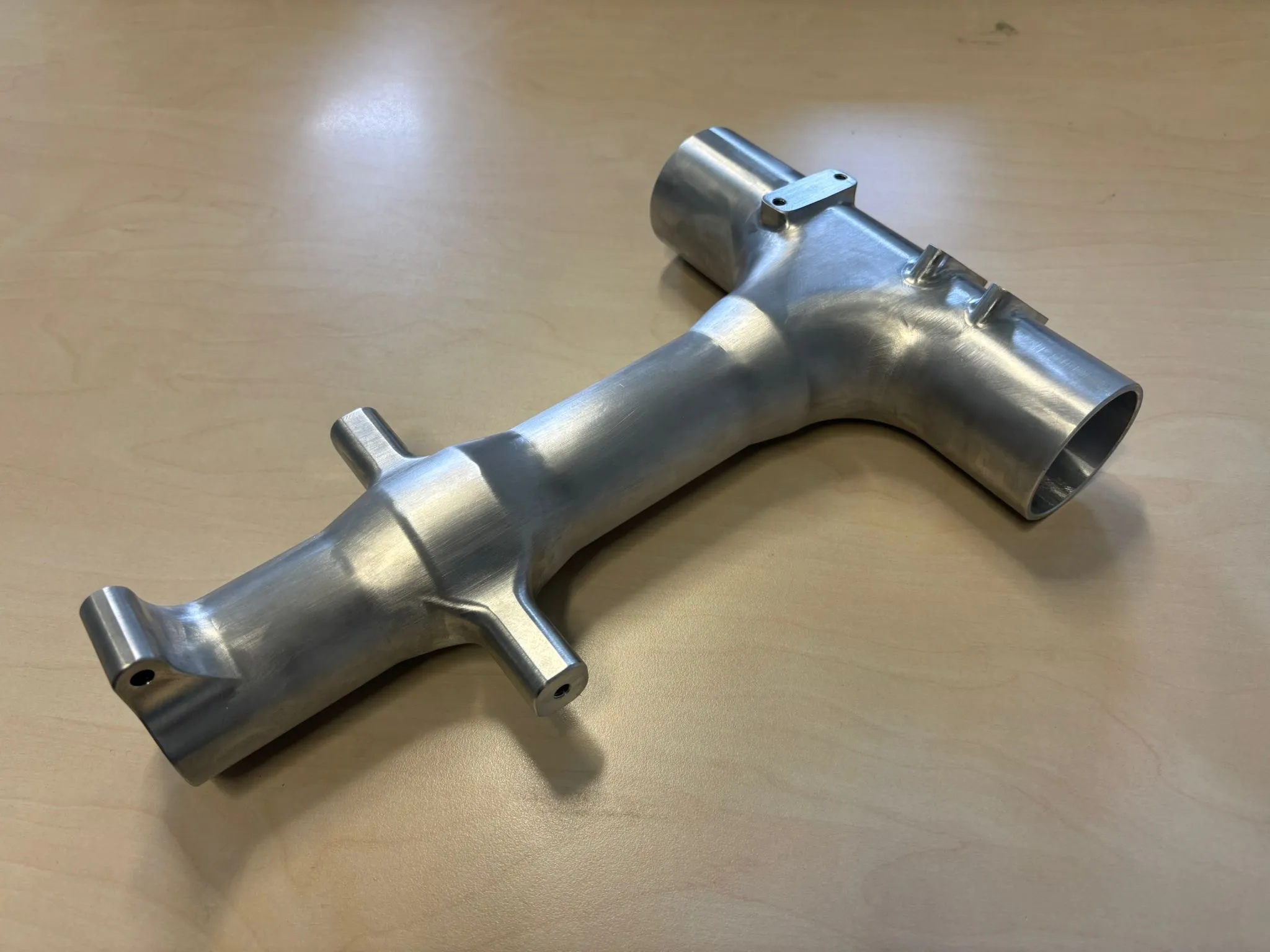

Native 3D design of joints and pins, virtual clash analysis and FEM for torsion stiffness. Five-axis CNC parts with µm tolerances on wheel bays; complementary toolmaking and carbon or aluminium components to client specification.
Native 3D-Konstruktion aller Gelenke und Bolzen, virtuelle Kollisionsprüfung und FEM zur Torsionssteifigkeit. 5-Achs-CNC mit µm-Toleranzen an Radschächten; ergänzend Formenbau sowie Carbon- und Aluminiumkomponenten nach Kundenvorgabe.
Industrial model / Industriemodell
Mechanics that deliver. Mechanik, die trägt.

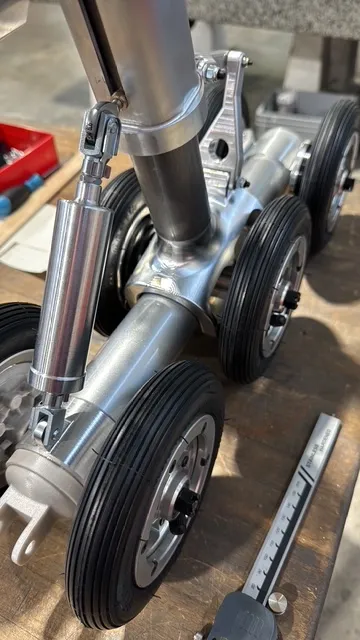

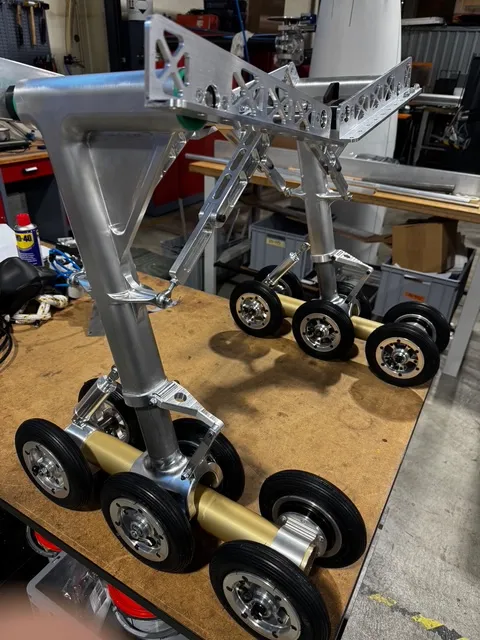

Damping and lock-up at model scale — developed as a high-end functional model with CNC and composite content, not as certified aviation hardware.
Dämpfung und spielfreie Verriegelung im Modellmaßstab — entwickelt als High-End-Funktionsmodell mit CNC- und Faserverbundanteilen, nicht als zugelassenes Luftfahrtbauteil.
Project inquiry / Projektanfrage
Request landing gear engineering for your industrial model.
Fahrwerkskonstruktion für Ihr Industriemodell anfragen.
