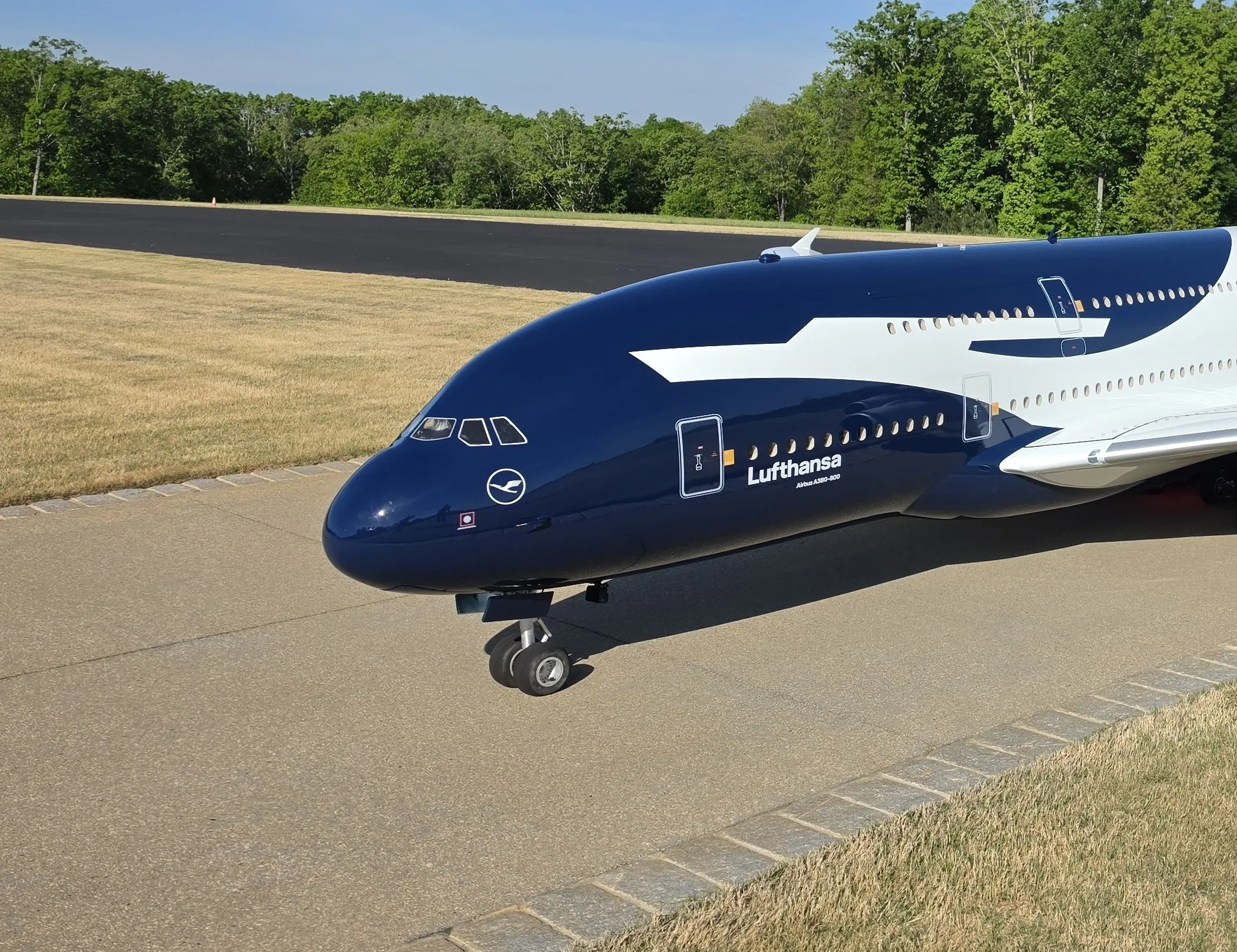

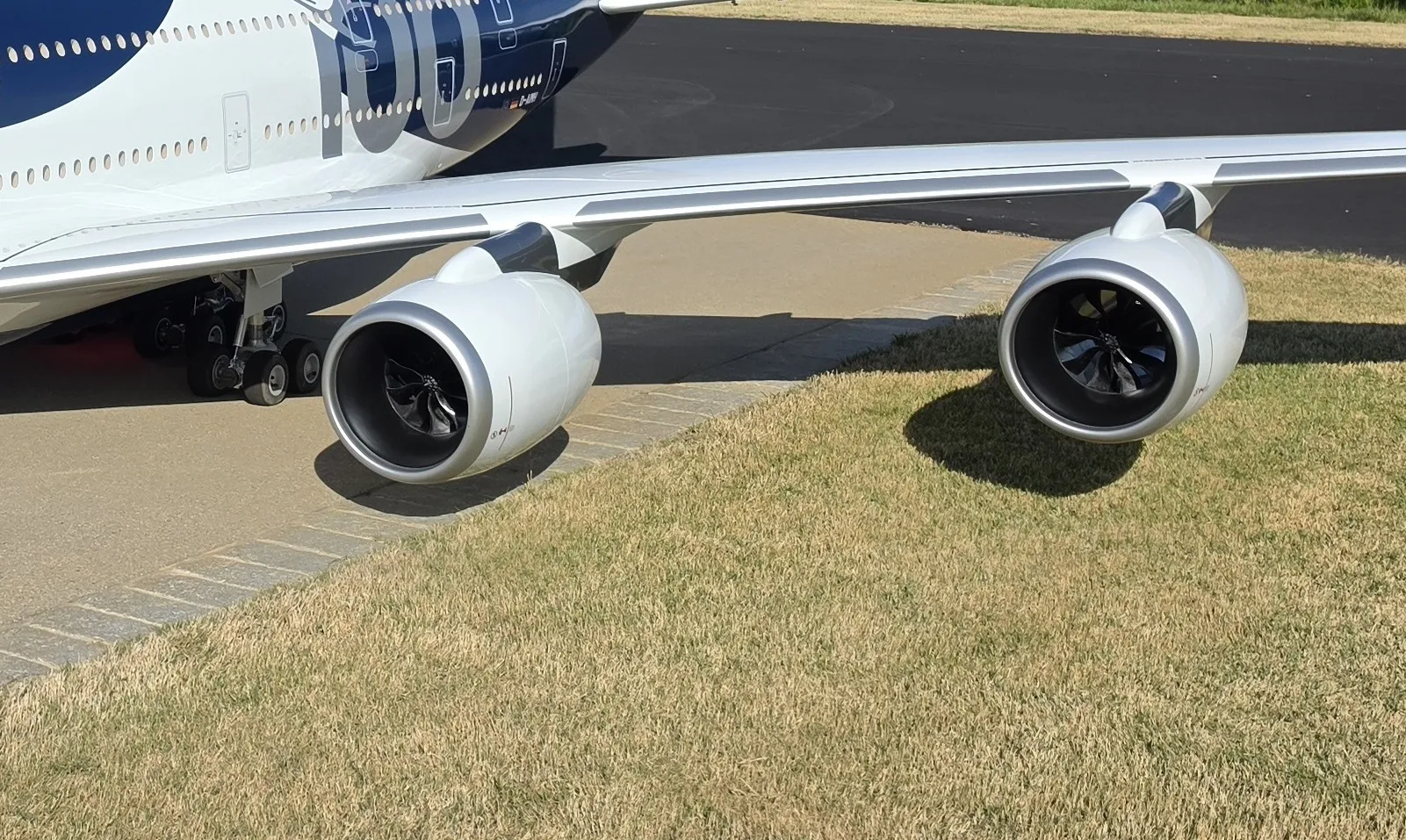

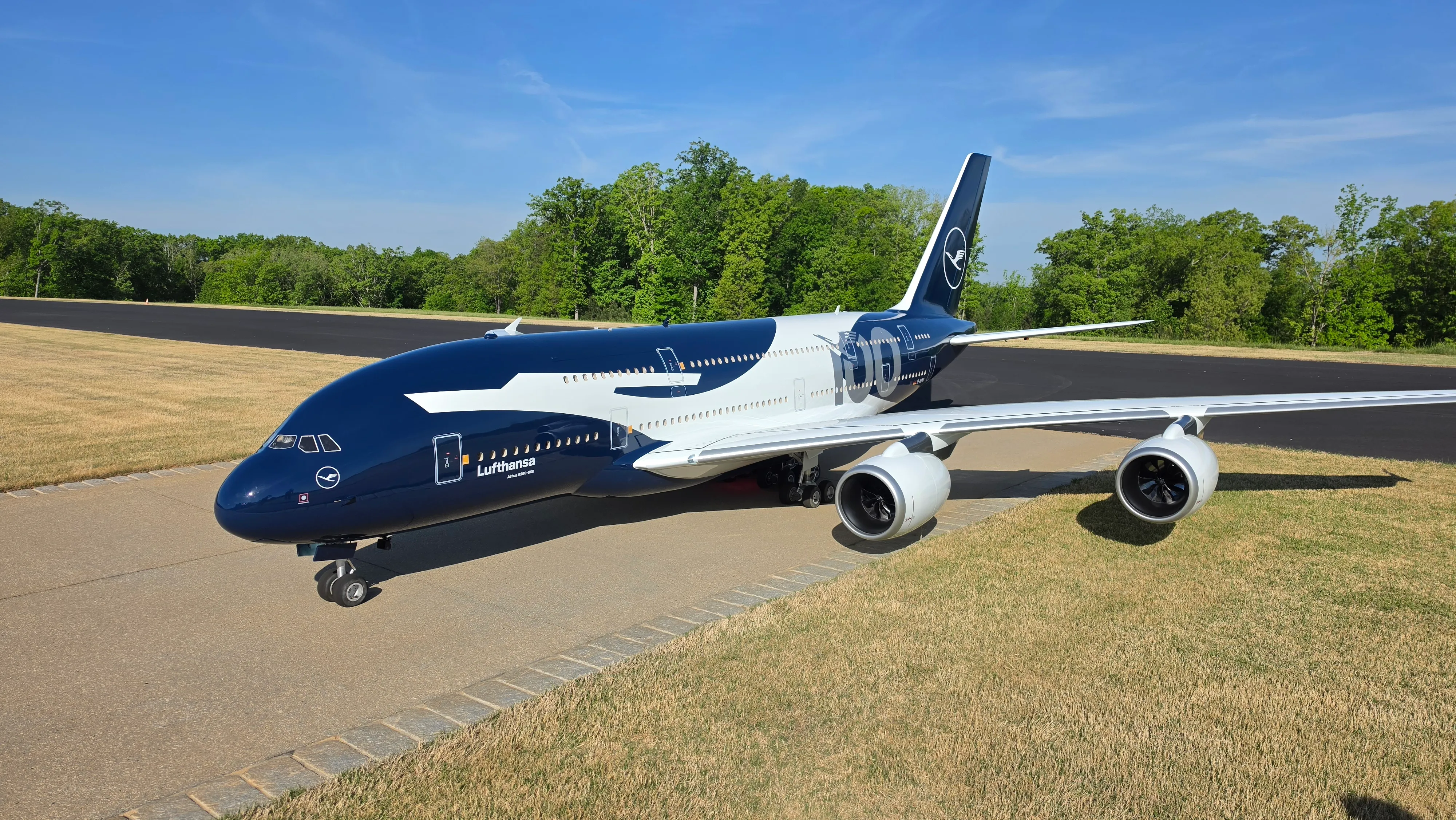

AIRBUS A380
Four-bogie kinematics. Exact scale.
Vierstrang-Kinematik. Exakter Maßstab.
The challenge / Die Herausforderung
Four bogies. One tolerance. Vier Stränge. Ein Spiel.

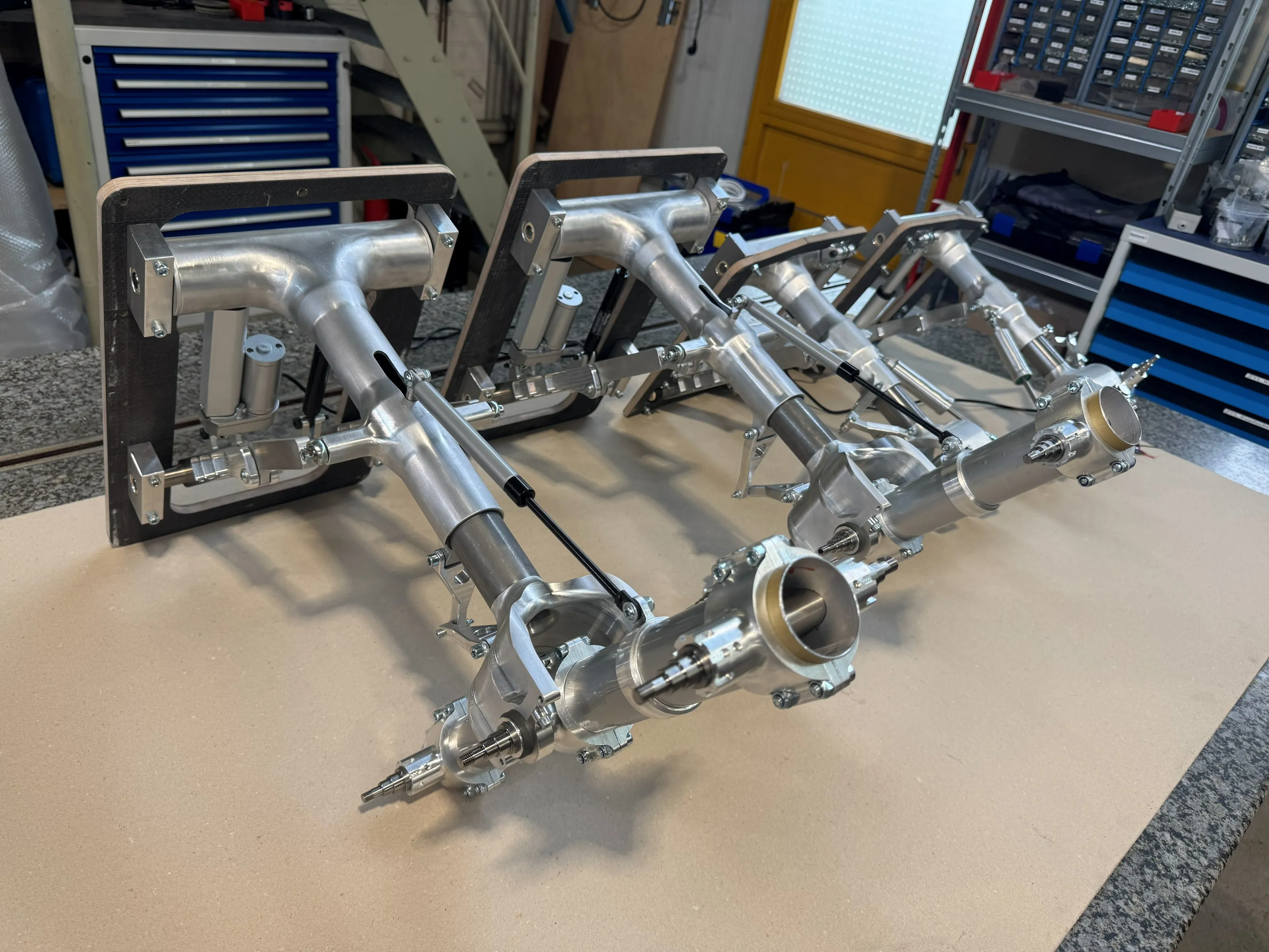

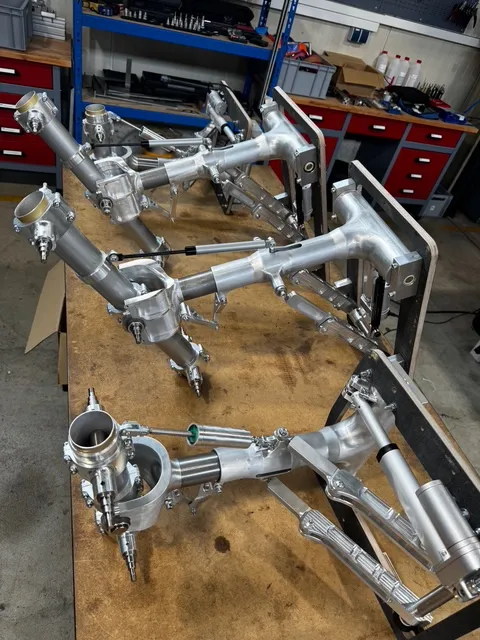

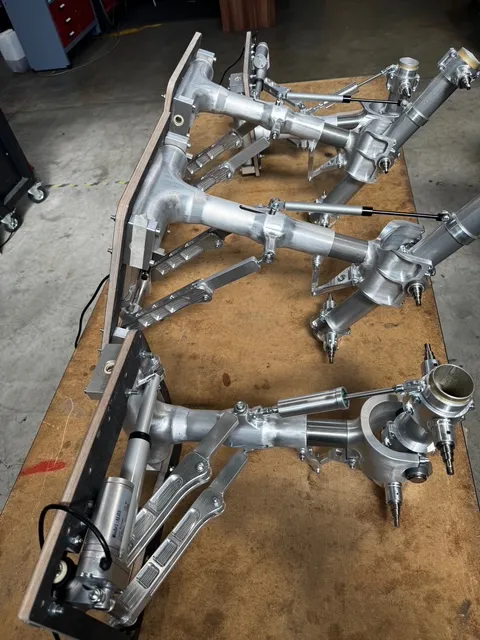

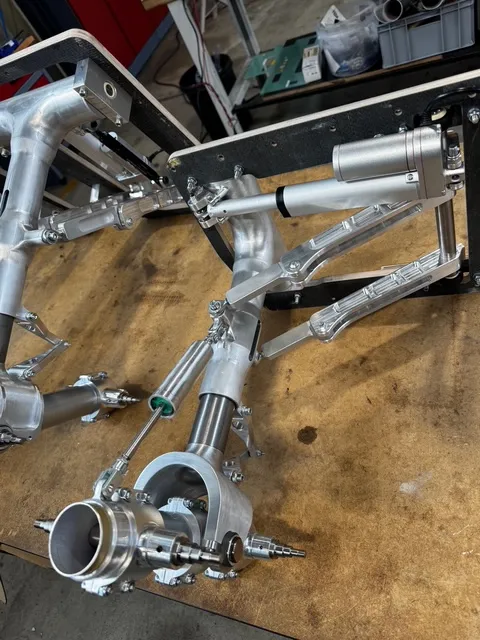

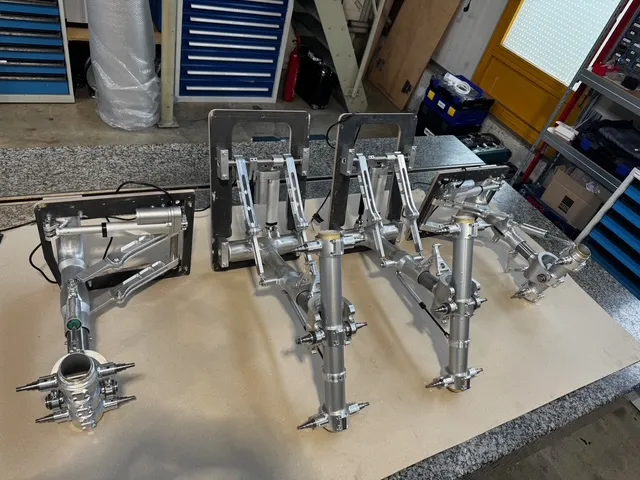

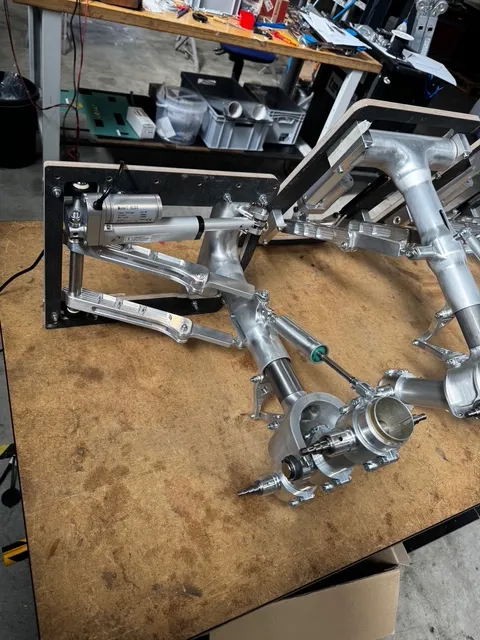

Four independent gear legs with twin wheels per bay — minimal packaging, no clash on retraction. Required for industrial modelling: parallel, play-free lock-up on demonstrator and wind-tunnel hardware.
Vier unabhängige Fahrwerksstränge mit Doppelrad pro Schacht — minimales Bauraum, keine Kollision beim Einfahren. Anforderung aus dem industriellen Modellbau: parallele, spielfreie Einrastung am Demonstrator und Windkanal-Funktionsmodell.
Engineering / Engineering
Multi-axis control, CNC. Mehrachs-Steuerung, CNC.

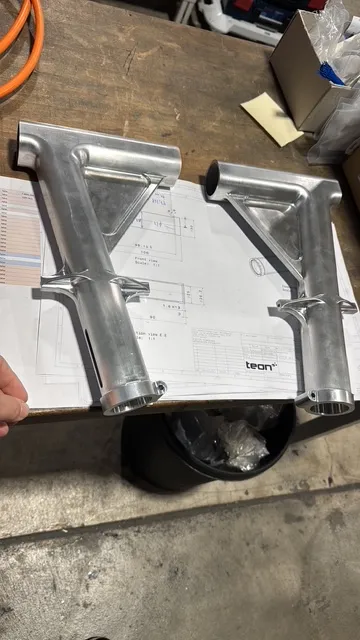

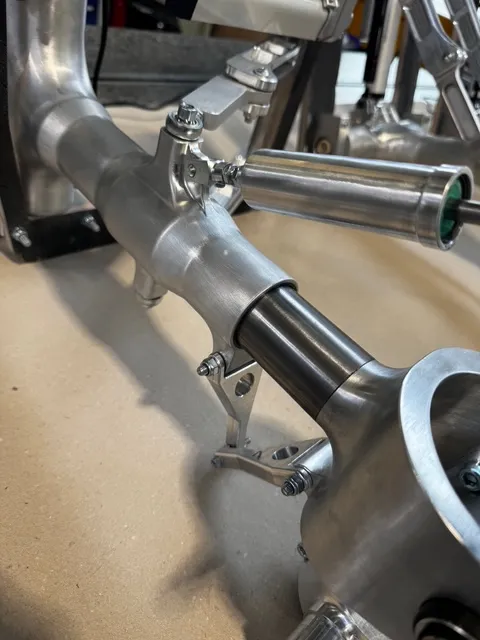

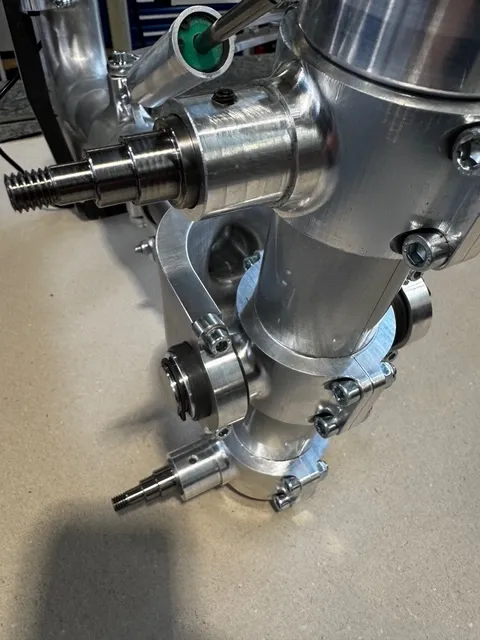

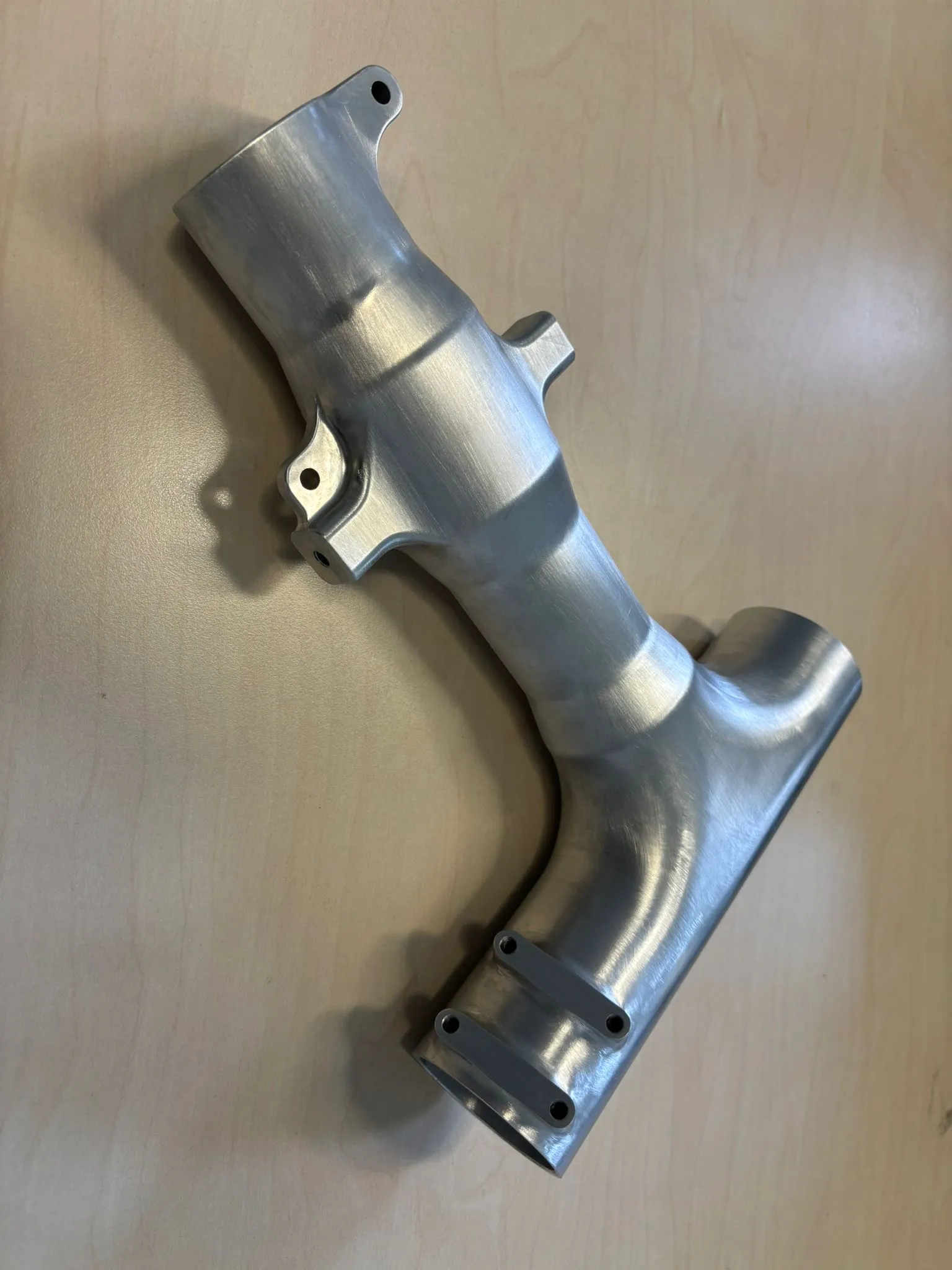

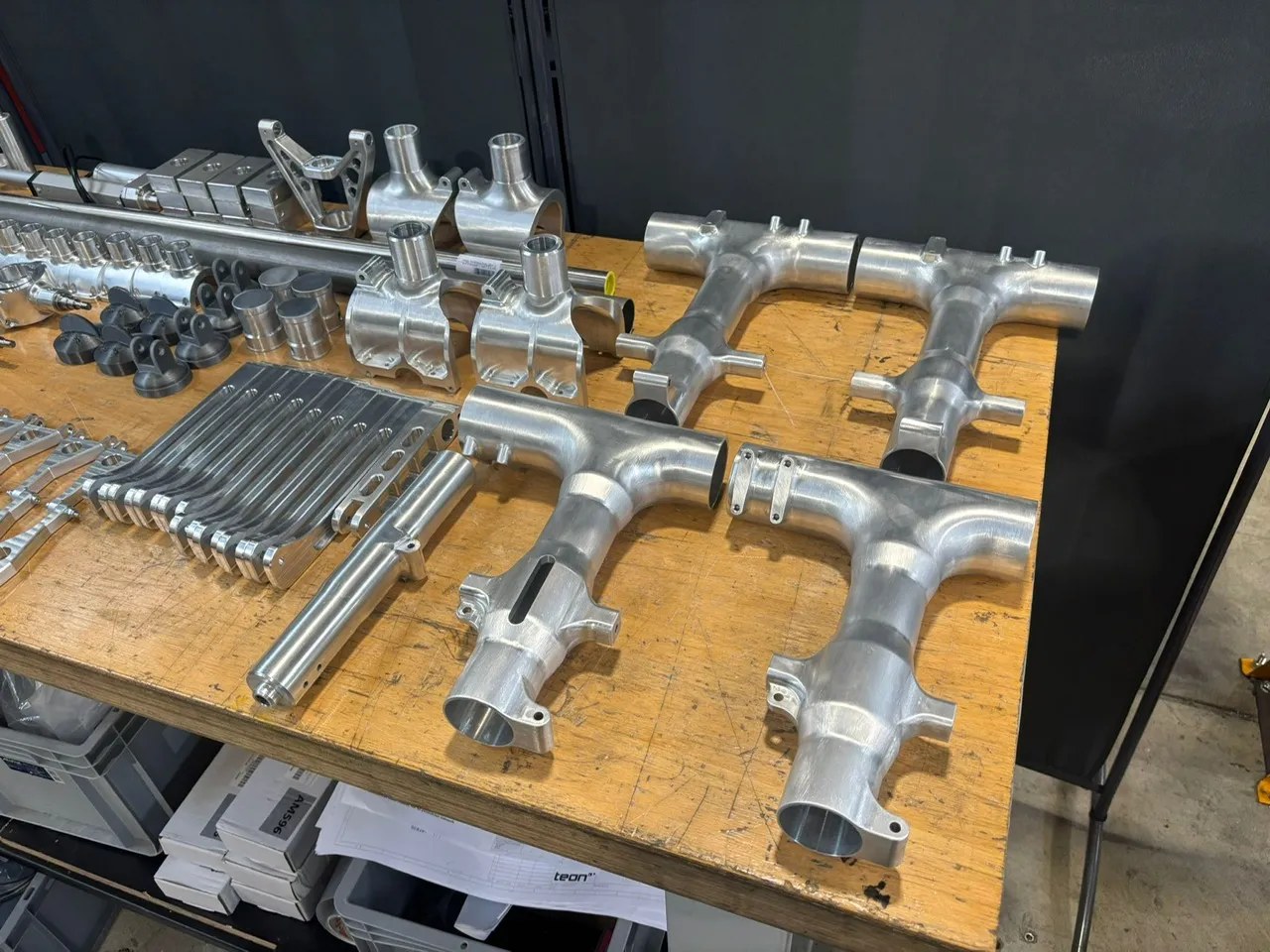

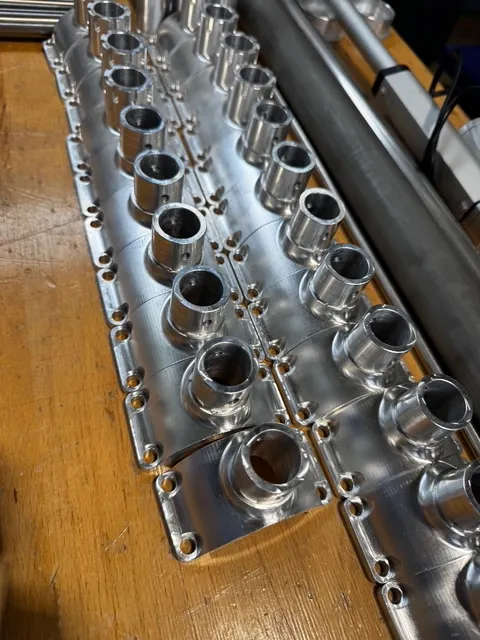

Full parametric CAD, cylinder-bundle clash checks, Ra 0.8 on bearing faces. CNC on main pins and struts; titanium and carbon per specification — rated for repeated model duty cycles.
Vollparametrisches CAD, Kollisionsprüfung im Zylinderbund, Ra 0,8 an Lagerflächen. CNC an Hauptbolzen und Streben; Titan- und Carbonanteile nach Spezifikation — ausgelegt für wiederholbare Modellbelastung.
Industrial model / Industriemodell
Synchronised model kinematics. Synchronisierte Modellkinematik.
Sequential lock-up without binding, elastic relief at model scale — high-end industrial modelling with CNC, toolmaking and composites for demanding client programmes.
Sequenzielle Verriegelung ohne Klemmen, elastische Entlastung im Modellmaßstab — High-End-Industriemodellbau mit CNC, Formenbau und Faserverbund für anspruchsvolle Kundenprojekte.
Project inquiry / Projektanfrage
Request multi-bogie landing gear for your industrial model.
Mehrstrang-Fahrwerk für Ihr Industriemodell anfragen.
